Baker

BA 39100-10

BA 39100-10

Drive motor

$99,999.00
$99,999.00
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
Baker Call for Price Drive Motor Electric Lift Truck Parts Motor

Compatibility

Make Baker
Model -

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

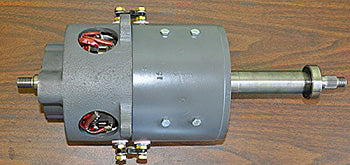

Drive motor BA 39100-10 by Baker is an OEM DC traction motor specified for Baker electric lift truck models. Motor operates at 24VDC, continuous duty, and delivers rated 80 ft-lbs torque at 3400 RPM. OEM and cross-reference part numbers: BA39100-10, BK 39100-10, BA3910010, BK 3910010. Features stud terminals, flange mounting, 1.125 in shaft diameter, steel frame, and double-sealed ball bearings.

Specifications

Electrical
Motor Voltage24VDC nominal
Material
Frame MaterialSteel housing, end bells cast aluminum alloy
Insulation ClassClass F per IEC 60085
Part Numbers
OEM Part NumberBA 39100-10
Cross-Reference Part NumbersBA39100-10, BK 39100-10, BA3910010, BK 3910010
Performance
RPM (Rated)3400 RPM at 24VDC

Frequently Asked Questions

Q: What is the BA 39100-10 motor and what is it used for?
A: The BA 39100-10 is an OEM DC traction motor by Baker specified for Baker electric lift truck models. It operates at 24 VDC nominal, provides 80 foot-pounds of torque at 3400 RPM, and is designed for continuous duty applications.

Q: What are the electrical specifications for the BA 39100-10?
A: The BA 39100-10 motor has a nominal voltage of 24 VDC, rated speed of 3400 RPM at 24 VDC, and produces 80 foot-pounds of torque. Insulation is Class F per IEC 60085. Features include stud terminals and flange mounting for Baker electric lift truck installations.

Q: What cross-reference part numbers are available for the BA 39100-10?
A: The BA 39100-10 is cross-referenced as BA39100-10, BK 39100-10, BA3910010, and BK 3910010. Use these alternate part numbers when searching inventory or identifying equivalent motors.

Q: What is the shaft diameter and bearing configuration?
A: The BA 39100-10 features a 1.125 inch shaft diameter and double-sealed ball bearings. The steel housing and cast aluminum alloy end bells provide durability in electric lift truck duty cycles.
