Product Description

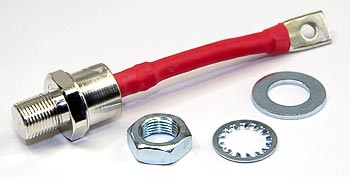

Diode
Frequently Asked Questions
Q: What is the function of the BA F023697 diode in electric lift truck systems?
A: The BA F023697 diode is a power electronics component that controls directional current flow in motor control circuits or charging systems. It protects the electrical system from reverse current and voltage spikes that could damage sensitive components.
Q: What equipment models and voltage systems use the BA F023697 diode?
A: The BA F023697 is compatible with various Crown, Toyota, and Raymond electric lift trucks. Diode specifications vary by voltage rating (typically 12V, 24V, or 36V systems). Verify your equipment voltage and control circuit type before ordering.
Q: What happens if the BA F023697 diode fails?
A: A failed diode causes loss of directional control, unwanted reverse current, or prevents the motor from operating altogether. Control circuits may short or malfunction, and protective capacitors or other components can be damaged. Replace immediately if diode failure is suspected.
Q: How do I test if the BA F023697 diode is defective?
A: A multimeter in diode test mode shows zero resistance in the forward direction and infinite resistance in the reverse direction for a healthy diode. If both directions show zero resistance or infinite resistance, the diode is shorted or open and must be replaced.
