Product Description

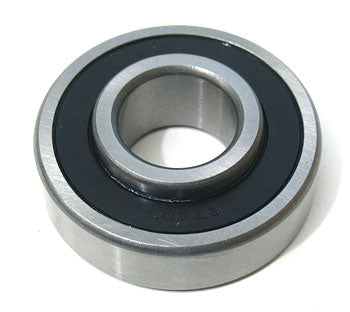

The 0000-14313-11200 is a direct replacement ball bearing with extended inner ring, engineered for Toyota electric lift truck drive motors. This precision-grade bearing features a 35 mm bore and 62 mm outside diameter, delivering reliable performance in demanding industrial environments. Constructed from hardened bearing steel, it provides superior wear resistance and maintains precise tolerances under heavy cyclic loads. Ideal for electric pallet jacks, walkie stackers, and platform trucks requiring high-performance motor bearings.
Specifications
Dimensions
| Bore Diameter | 35 mm |
| Outside Diameter | 62 mm |
| Width | 17 mm |
Material & Construction
| Ring Material | Hardened bearing grade steel |
| Ball Material | Hardened bearing grade steel |
Specifications
| Bearing Type | Ball bearing with extended inner ring |
| Application | Electric lift truck drive motors |
Part Numbers
| Manufacturer Part Number | 0000-14313-11200 |
| Alternate Part Number | 14313-11200-71 |
Frequently Asked Questions
Q: What is the purpose of the extended inner ring on the TO 14313-11200 bearing?
A: The extended inner ring on the TO 14313-11200 allows the bearing to mount on larger shaft diameters or accommodate specific drive motor configurations. This design is used in Toyota electric lift truck pump and drive motors where standard inner ring length does not provide adequate load support for the application.
Q: What are the exact dimensions of the TO 14313-11200 bearing?
A: The TO 14313-11200 features a 35 millimeter bore, 62 millimeter outside diameter, and 17 millimeter width. It is constructed from hardened bearing steel and engineered for high-load radial and axial applications in electric lift truck drive motors.
Q: Which Toyota lift truck models use the TO 14313-11200 bearing?
A: The TO 14313-11200 is compatible with various Toyota electric pallet jacks, walkie stackers, and platform trucks fitted with drive motors using 35 millimeter bore bearings. Verify your equipment model and serial range to confirm compatibility, as different generations may use different bearing specifications.
Q: How does hardened bearing steel in the TO 14313-11200 compare to standard bearings?
A: Hardened bearing-grade steel offers superior resistance to wear, deformation, and spalling under heavy cyclic loads. This material choice is essential for industrial lift truck applications where bearing failures can cause costly downtime. The hardened construction extends service life and maintains precise tolerances under demanding conditions.
Q: What symptoms indicate the TO 14313-11200 bearing needs replacement?
A: Replace the bearing if you notice excessive motor noise, vibration, shaft play, rough rotation, or overheating during operation. Grinding or squealing sounds indicate race damage. Once a bearing shows these symptoms, continued operation risks motor failure. Worn bearings should be replaced as a set if both sides of the motor are failing simultaneously.
