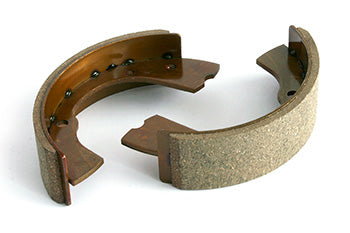

Brake Shoe Set for Barrett Electric Lift Truck
BR 5569-012
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Barrett BR 5569-012 OEM brake shoe set, compatible with Barrett electric lift trucks. Includes two-piece bonded friction composite shoes with SAE 1010 steel backing plates. Designed for direct replacement in standard Barrett drum brake assemblies. No equivalent, superseding, or cross-reference part numbers published. All dimensions meet Barrett OEM specifications for professional maintenance and repair.
Compatibility: Fits pallet jacks made by Barrett, model WRPN 60/80. Alternate model: WRPN60/80. SKU: BR 5569-012
Specifications
Material & Construction
| Construction | Includes two-piece bonded friction composite shoes with SAE 1010 steel backing plates. |
Part Numbers & Compatibility
| Make | Barrett |
| Model | WRPN 60/80 |
| Part Number | BR 5569-012 |
| Compatibility | Fits pallet jacks made by Barrett, model WRPN 60/80. Alternate model: WRPN60/80. |
Wheel Dimensions
| Dimensions | All dimensions meet Barrett OEM specifications for professional maintenance and repair. |
Additional Specifications
| Friction Material Hardness | Rockwell C30 nominal |
| Finish/Coating | Industrial matte phosphate conversion coating |
| Friction Material Specification | Industrial-grade bonded friction composite (as supplied for OEM Barrett brake shoes) |
| Service Factor | 1.15 (minimum for industrial application) |
| Estimated Efficiency | 85% at rated pressure |
| Replacement | Designed for direct replacement in standard Barrett drum brake assemblies. |
Frequently Asked Questions
Q: What equipment does BR 5569-012 fit?
A: BR 5569-012 is designed for Barrett electric lift trucks, specifically models WRPN 60/80. This is a replacement brake shoe set compatible with standard Barrett drum brake assemblies.
Q: What material is BR 5569-012 made from?
A: BR 5569-012 consists of industrial-grade bonded friction composite shoes with SAE 1010 steel backing plates. The friction material is Rockwell C30 nominal hardness, and an industrial matte phosphate conversion coating provides corrosion protection.
Q: When should BR 5569-012 be replaced?
A: Replace BR 5569-012 when friction surface wear approaches minimum thickness per manufacturer specifications or when brake response becomes sluggish. Excessive noise, reduced stopping power, or visible cracks in the friction material indicate replacement is needed.
Q: What are the durability characteristics of BR 5569-012?
A: BR 5569-012 is built for industrial duty applications with a service factor of 1.15 minimum, ensuring adequate braking performance and safety margins under normal operating conditions.
Q: How do I find the right replacement for my brake shoes?
A: BR 5569-012 is a direct replacement for standard Barrett drum brake assemblies on models WRPN 60/80. Ensure compatibility by verifying the make and model of your equipment.
