Battery Connectors for Raymond Electric Lift Truck
RA 590-724
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

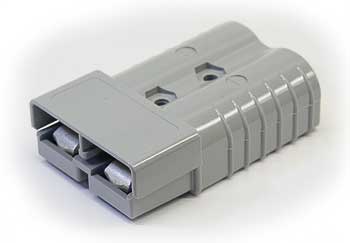

Raymond RA 590-724 is a 350 amp, 2/0 AWG battery connector assembly (gray), designed for electric lift truck battery circuits, specifically compatible with Raymond 7400, 7420, and 7440 series. It features a rugged polymer housing, 2-pole design, copper or copper alloy tin-plated contacts, and is fully cable-mounted. Supersession includes part numbers for alternative color-coded and capacity variants.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 7400, 7420, 7440, 261, PDPM-186, 63, 64, 65, R35, R4, R5, PDPM-85 |
| Compatible Equipment | Raymond 7400, 7420, 7440 series |
| Part Number | RA 590-724 |
Electrical Specifications
| Rated Current | 350 amp continuous |
Additional Specifications
| Cable Gauge | 2/0 AWG |
| Number of Poles | 2 pole design |
| Housing Material | Rugged polymer |
| Contacts Material | Copper or copper alloy tin-plated |
| Color | Gray |
| Mounting Type | Fully cable-mounted |
Frequently Asked Questions
Q: Which Raymond equipment models is the RA 590-724 compatible with?
A: The RA 590-724 is compatible with Raymond 7400, 7420, 7440, 261, PDPM-186, 63, 64, 65, R35, R4, R5, and PDPM-85 series electric lift trucks.
Q: What materials are used in the RA 590-724 housing and contacts?
A: The connector features a rugged polymer housing and copper or copper alloy tin-plated contacts. The 2-pole design with tin plating provides corrosion resistance and reliable conductivity for high-amperage battery circuits.
Q: How do I know if the RA 590-724 is the right replacement part for my equipment?
A: Verify your equipment model number to ensure compatibility. The RA 590-724 is designed for use in Raymond electric lift trucks and fits specific models listed above.
Q: Is the RA 590-724 fully cable-mounted?
A: Yes, the RA 590-724 is a fully cable-mounted assembly, meaning the connectors attach directly to the battery cables without requiring separate housing installation on the equipment frame.
Q: What is the purpose of the RA 590-724 connector assembly?
A: The RA 590-724 is a replacement part designed for high-amperage battery connections in electric lift trucks. It ensures reliable conductivity and durability in material handling equipment.
