Product Description

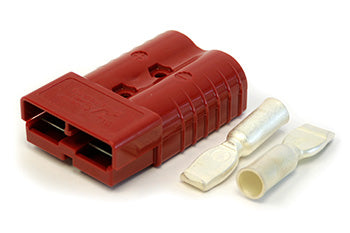

Raymond RA 590-726 Battery Connector Assembly is a 350 amp, 2/0 AWG red Anderson SB350 type connector designed for high-current battery connections on Raymond electric lift truck series 7400, 7420, and 7440. Features silver-plated copper contacts, durable thermoplastic housing, and color-keyed design for safe, high-cycle material handling environments.
Specifications
Compatibility
| Compatible Equipment Series | Raymond 7400, 7420, 7440 Series Electric Lift Trucks |
| Application | Battery connectors for electric lift truck power leads |
Electrical
| Continuous Current Rating | 350 amperes |
| Cable Gauge Compatibility | 2/0 AWG |
| Connector Type | Anderson SB350 |
| Housing Color | Red |
Materials & Construction
| Contact Material | Silver-plated copper |
| Housing Material | Thermoplastic |
Part Numbers
| Part Number | RA 590-726 |
| Cross-Reference Part Numbers | Supersedes RA 590-724, RA 590-725; Equivalent to RA 590-739, RA 590-755/003 |
Frequently Asked Questions
Q: What does Anderson SB350 mean on the RA 590-726?
A: Anderson SB350 indicates that the RA 590-726 is a 350 ampere connector that follows the Anderson Power Products SB350 standard. This is a widely recognized connector type used in high-current battery applications.
Q: What does the red housing color indicate on the RA 590-726?
A: The red housing is a color-keyed design that helps operators and technicians visually identify this connector variant in the field. Red typically indicates a positive or dedicated circuit in material handling equipment.
Q: What is the continuous current rating for the RA 590-726?
A: The RA 590-726 is rated for 350 amperes continuous current and accommodates 2/0 AWG cable, meeting high-current requirements for Raymond electric lift truck battery connections.
Q: What materials are used in the RA 590-726 construction?
A: The RA 590-726 features silver-plated copper contacts for superior conductivity and corrosion resistance, paired with a durable thermoplastic housing that provides impact and environmental protection.
Q: Which Raymond equipment series is the RA 590-726 compatible with?
A: The RA 590-726 is designed for Raymond 7400, 7420, and 7440 series electric lift trucks. It supersedes RA 590-724 and RA 590-725, and is equivalent to RA 590-739 and RA 590-755/003 variants.
Q: Is the RA 590-726 suitable for cold storage and wet floor environments?
A: Yes, the silver-plated copper contacts and durable thermoplastic housing make the RA 590-726 suitable for material handling operations in challenging environments including cold storage facilities and wet floor conditions.
