Product Description

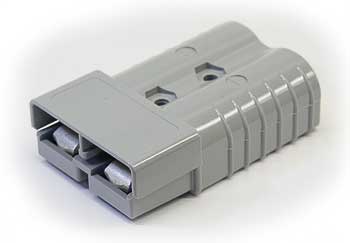

Liftsplus TA 76-018-00 is a gray 6-pin battery connector engineered for electric lift truck applications, featuring heavy-duty copper alloy contacts, gold plating, 20A per contact, 24VDC nominal rating, glass-reinforced PBT shell, UL94 V0/5VA flame resistance, and field-ready Velcro mounting.
Specifications
Electrical
| Voltage Rating | Up to 24VDC nominal |
| Current Rating | 20A continuous per contact |
| Wire Compatibility | AWG 14 gauge compatible |
Part Numbers
| Manufacturer Part Number | TA 76-018-00 |
| Cross-Reference Part Numbers | TA76-018-00, TA7601800, 7601800 |
| OEM Part Number | TA 76-018-00 |
| Equivalent Part Numbers | TA76-018-00, TA7601800, 7601800 |
Frequently Asked Questions
Q: What are the electrical specifications for the TA 76-018-00 connector?
A: The TA 76-018-00 is a 6-pin battery connector rated for 24VDC nominal voltage with 20A continuous current capacity per contact. The connector features heavy-duty copper alloy contacts with gold plating to resist corrosion and ensure reliable electrical transfer in electric lift truck applications.
Q: What wire gauge does the TA 76-018-00 accept?
A: The TA 76-018-00 is compatible with AWG 14 wire. This gauge rating ensures proper contact compression and secure electrical connections. Using undersized or oversized wire compromises connection integrity and increases resistance.
Q: What materials are used in the TA 76-018-00?
A: The connector features a glass-reinforced PBT shell rated UL94 V0 and 5VA flame resistance. The contact terminals are copper alloy with gold plating. These materials provide durability in harsh material handling environments and cold storage conditions.
Q: Which lift truck brands use 6-pin battery connectors like TA 76-018-00?
A: This connector is compatible with 24-volt electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, and BT. Verify pin configuration and voltage on your equipment before ordering.
Q: What are the cross-reference part numbers for TA 76-018-00?
A: Cross-reference and equivalent part numbers for this connector include TA76-018-00, TA7601800, and 7601800. These variations represent the same 6-pin 24VDC connector with identical electrical and physical specifications.
Q: What causes battery connector failure?
A: Connector failure typically results from corrosion on gold-plated contacts, loose pin crimps, moisture intrusion, and repeated connect-disconnect cycles. Damaged contacts produce intermittent battery voltage supply. Replace connectors showing green oxidation or corroded gold plating.
