Battery Connectors for Raymond
RA 590-726-01
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

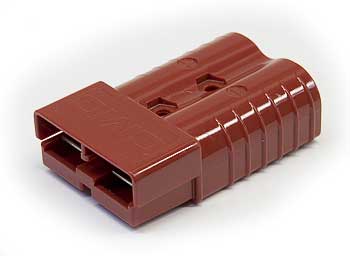

The Raymond 350-amp battery connector (RA 590-726-01) is a high-current DC power connector designed specifically for Raymond Model electric pallet jacks. Rated for 2/0 AWG cable, this connector features a durable red polycarbonate housing that is flame-retardant and impact-resistant. The tin-over-nickel contact plating ensures reliable electrical connectivity and corrosion resistance in demanding warehouse and dock environments. Direct replacement connector for critical power distribution on electric lift trucks.
Specifications
Electrical
| Connector Type | High-current DC power battery connector |
| Amp Rating | 350 amp |
| AWG Size | 2/0 AWG |
| Housing Color | Red |
Material & Construction
| Insulator Material Specification | Polycarbonate, flame-retardant, meets UL 94 V-0 |
| Contact Plating Thickness | 0.0003 inch tin over nickel |
Part Numbers
| Part Number | RA 590-726-01 |
| Cross-Reference Part Numbers | Supersedes RA 590-726, equivalent to 590726, 590-726 |
| Compatible Equipment Models | Raymond Model Electric Pallet Jack |
Frequently Asked Questions
Q: What is the amperage rating and cable gauge for the RA 590-726-01 connector?
A: The RA 590-726-01 is rated for 350 amperes with 2/0 AWG cable compatibility. This connector is designed for high-power applications on Raymond Model electric pallet jacks.
Q: Which Raymond models does the RA 590-726-01 fit?
A: The RA 590-726-01 is compatible with Raymond Model electric pallet jacks. Verify your equipment model number before ordering to ensure fitment.
Q: What material is the RA 590-726-01 housing made from?
A: The connector features a red polycarbonate housing that is flame-retardant and impact-resistant, designed to withstand demanding material handling environments.
Q: Are there cross-reference or superseded part numbers for RA 590-726-01?
A: The RA 590-726-01 supersedes the RA 590-726 connector. Equivalent part number references include 590726 and 590-726. Confirm your original part number matches before ordering replacement connectors.
Q: What connector type is the RA 590-726-01?
A: This is an OEM Raymond battery connector designed for power distribution circuits in electric lift trucks. The red polycarbonate housing indicates standard positive or high-voltage connections in truck power systems.
