Product Description

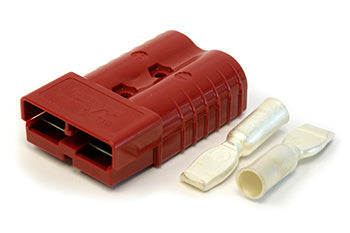

Baker BA 109861 battery connector, red, rated 350A continuous duty for industrial electric lift trucks. Housing constructed from impact-resistant polycarbonate, flammability rated UL94 V-0. Copper alloy, tin plated contacts compatible with 1/0 to 4/0 AWG wires. Nominal contact diameter 0.50 inch. Designed for use in 24-48VDC battery systems. No cross-reference part numbers available.
Specifications
Electrical
| Voltage Compatibility | Suitable for 24VDC to 48VDC industrial battery systems |
| Connector Type | Power battery connector, polarized housing |
Part Numbers
| OEM Part Number | BA 109861 |
Performance
| Connection Cycle Life | Mechanical cycle life rated ≥1000 connections/disconnections |
Frequently Asked Questions
Q: What is the current rating for the BA 109861 red battery connector?
A: The BA 109861 is rated for 350A continuous duty and is designed as the positive battery connector for industrial electric lift truck systems. The red color coding indicates positive polarity.
Q: Which voltage systems does the BA 109861 support?
A: The BA 109861 is suitable for 24VDC to 48VDC industrial battery systems. Confirm your lift truck voltage specification before ordering.
Q: What makes the BA 109861 suitable for demanding industrial applications?
A: The BA 109861 features impact-resistant polycarbonate housing rated UL94 V-0 for flammability. Tin-plated copper alloy contacts resist corrosion and provide reliable electrical continuity even in wet or cold storage environments.
Q: What wire sizes can the BA 109861 accommodate?
A: The BA 109861 accepts 1/0 to 4/0 AWG wires with a nominal contact diameter of 0.50 inch. Verify your existing wire gauge to confirm compatibility.
Q: How many connect-disconnect cycles is the BA 109861 rated for?
A: The BA 109861 has a mechanical cycle life of 1000 connections and disconnections. This rating reflects durability for repeated battery maintenance and replacement cycles.
Q: Is the BA 109861 connector polarized?
A: Yes, the BA 109861 features polarized housing to prevent reverse connection. The red positive connector is not interchangeable with the blue negative connector, ensuring correct polarity installation.
