Product Description

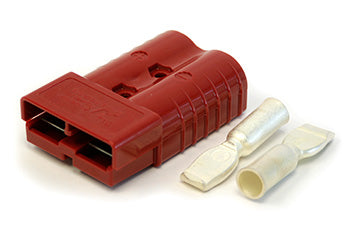

Crown CR 077917-003 is an SB 350A battery connector kit designed for use with electric lift trucks. The kit features a red glass-filled nylon housing, copper alloy contact terminals, panel-mount compatibility, and crimp-type cable termination for 2/0 AWG wiring. Rated for continuous 350A current and suitable for up to 48VDC systems. Cross-reference numbers include CR077917-3, CR0779173, and 0779173.
Specifications
Electrical
| Rated Current | 350A continuous |
| Connector Type | SB series, 350A |
| Gauge Compatibility | 2/0 AWG |
Part Numbers
| OEM Part Number | CR 077917-003 |
| Manufacturer Part Number | 077917-003 |
| Cross-Reference Part Numbers | CR077917-3, CR0779173, 0779173 |
| Compatible Models | Electric lift trucks utilizing SB 350A battery connector, 2/0 gauge; compatible with select Crown PE series (PE 3000 battery connector reference noted) |
Performance Specifications
| Duty Cycle | Continuous power transmission rated for up to 350A at specified voltage |
Frequently Asked Questions
Q: Is the CR 077917-003 a complete kit or individual component?
A: The CR 077917-003 is an SB 350A battery connector kit that includes housing and contact terminals together. This is a complete assembly designed for 2/0 AWG wiring with 350 amps continuous rating.
Q: What color is the housing on the CR 077917-003?
A: The CR 077917-003 features a red glass-filled nylon housing. The red color distinguishes it from the gray 175A and 350A single-connector models and allows quick identification of connector type in the field.
Q: What is the cable termination method for this kit?
A: The CR 077917-003 uses crimp-type cable termination with copper alloy contact terminals. Verify you have proper crimping tools rated for 2/0 AWG terminals before assembly.
Q: Which Crown lift truck models use the CR 077917-003?
A: The CR 077917-003 is compatible with electric lift trucks utilizing the SB 350A battery connector standard, including select Crown PE series models. Verify your equipment model against the cross-reference numbers CR077917-3, CR0779173, or OEM part 0779173.
Q: Is this connector panel-mountable?
A: Yes, the CR 077917-003 kit features panel-mount compatibility, allowing installation directly into battery charger or vehicle dashboard enclosures. Confirm panel thickness and mounting hole size match your installation requirement.
Q: What voltage range is the CR 077917-003 rated for?
A: The CR 077917-003 is suitable for up to 48VDC systems. Do not use in higher-voltage or AC applications without confirming compatibility with equipment documentation.
