Product Description

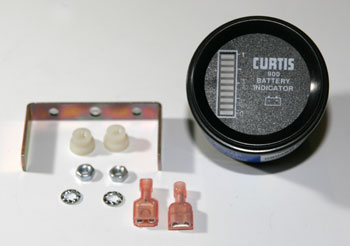

Battery Discharge Indicator HY 2308295, Hyster OEM 24V panel-mount electric status indicator for electric lift trucks. Features integrated LED bar graph display, continuous duty cycle, and lift interrupt output.
Specifications
Electrical Specifications
| Operating Voltage | 24VDC nominal |
| Display Type | LED bar graph, integrated lift interrupt output |
| Connector Type | Integrated spade terminals, 0.250 inch female |
| Maximum Current Draw | 80 mA at 24VDC |
| Lift Interrupt Output Rating | Sink capability 0.5A at 24VDC |
Material & Construction
| Material Specification | UL 94 V-0 rated polymer enclosure |
Part Numbers
| Manufacturer Part Number | HY 2308295 |
| OEM Part Number | HY 2308295 |
Frequently Asked Questions
Q: What is the HY 2308295 and what does it display?
A: The HY 2308295 is a Hyster OEM 24VDC panel-mount battery discharge indicator featuring an integrated LED bar graph display. It provides real-time visual feedback of battery state of charge and includes a lift interrupt output signal for continuous duty cycle monitoring on electric lift trucks.
Q: What are the electrical specifications of the HY 2308295?
A: Operating voltage is 24VDC nominal. The unit draws a maximum of 80 mA at 24VDC under continuous operation. It features integrated spade terminals with 0.250 inch female connectors for standard harness integration.
Q: What is the lift interrupt output function on the HY 2308295?
A: The lift interrupt output provides a signal to the lift motor controller when battery voltage drops below a threshold. This feature prevents deep discharge by automatically limiting lift operations when the battery reaches a critically low state. This protects battery lifespan and maintains emergency descent capability.
Q: What material is the HY 2308295 housing constructed from?
A: The HY 2308295 housing is constructed from UL 94 V-0 rated thermoplastic, meeting flame-resistance requirements for industrial equipment. This material resists impact, vibration damage, and provides durability in warehouse and loading dock environments.
Q: How often should the HY 2308295 indicator be checked?
A: Verify the LED bar graph display is functioning and responding to battery state changes during daily shift startup. If the indicator fails to light or does not progress the LED bars when the truck is energized, check electrical connections and battery voltage. Replace the unit if LED segments remain unresponsive.
