Product Description

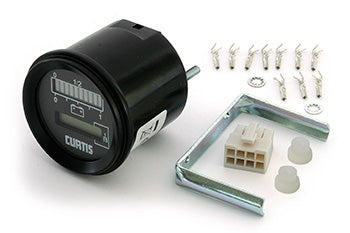

BATTERY & HOUR GAUGE
Frequently Asked Questions
Q: What does SKU 00591-09018-81 measure and monitor?
A: SKU 00591-09018-81 is a battery and hour gauge assembly that displays the state of charge of the forklift battery and cumulative operating hours. This information is essential for fleet maintenance scheduling and battery capacity tracking.
Q: Which lift truck brands use this battery and hour gauge?
A: This gauge assembly fits Toyota, Crown, Raymond, and other OEM electric lift truck models that use standard dashboard gauge interfaces. Confirm your equipment year and model before ordering to ensure electrical connector compatibility.
Q: What voltage does this gauge operate at?
A: This battery and hour gauge is designed for 48-volt systems, which is standard for most electric forklift fleets. Do not attempt to use this gauge on 36V or 24V systems, as it will not function correctly and may be damaged.
Q: How do I install or replace this gauge?
A: Disconnect the battery before removal. Unplug the gauge connector from the dashboard harness and remove the mounting bracket. Install the new gauge by reversing these steps, ensuring the connector is fully seated. Test by powering on the truck to verify display function.
Q: What does it mean when the gauge needle is in the red zone?
A: A red-zone reading indicates low battery charge. The truck must be charged before continued operation. Running a lift truck on a fully depleted battery will damage the battery and leave operators stranded.
Q: Why should I monitor the hour gauge?
A: The hour gauge tracks cumulative equipment runtime, which tells you when batteries, chargers, and major components are due for maintenance or replacement. Most forklift batteries need replacement after 1200 to 1500 operating hours.
