Product Description

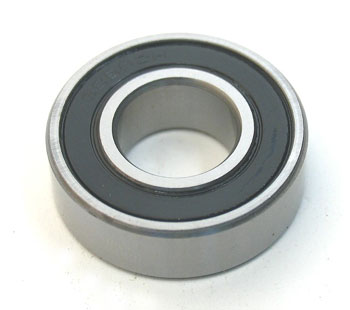

Barrett BR C15953-30 bearing is a radial ball bearing designed for use in electric lift trucks, featuring an outer diameter of 40 mm, bore diameter of 20 mm, and width of 12 mm. Constructed from chrome steel with press-fit steel cage, double shielded for enhanced contamination resistance. Rated for dynamic load of 3310 lbf and operational speeds up to 13000 RPM. Compatible with Barrett electric lift truck steering column assemblies and interchangeable with C15953-30A.
Specifications
Material & Construction
| Bearing Material | Bearing quality chrome steel (SAE 52100) |
| Hardness | HRC 60 (race and ball) |
Mechanical Specifications
| Load Rating (Dynamic) | 3310 lbf |
| Load Rating (Static) | 1950 lbf |
| Limiting Speed | 13000 RPM (grease lubrication) |
| Cage Material | Pressed steel |
| Tolerance | ABEC 1 / ISO class normal |
Part Numbers
| OEM Part Number | BR C15953-30 |
| Cross-Reference Part Numbers | Supersedes Barrett C15953, Equivalent to CC15953-30, Interchangeable with C15953-30A |
| Manufacturer Part Number | C15953-30 |
| Replaces/Supersedes | Replaces Barrett C15953 |
Frequently Asked Questions
Q: What are the dimensions of the BR C15953-30 bearing?
A: The BR C15953-30 radial ball bearing has a bore diameter of 20 mm, outer diameter of 40 mm, and width of 12 mm. These dimensions are critical for steering column assemblies on Barrett electric lift trucks.
Q: What is the dynamic load rating of BR C15953-30?
A: The BR C15953-30 is rated for a dynamic load of 3310 lbf. The static load rating is 1950 lbf. These specifications ensure the bearing can safely support steering and drive wheel loads in electric lift truck applications.
Q: What is the maximum operational speed for this bearing?
A: The BR C15953-30 is rated for operational speeds up to 13000 RPM. Verify your lift truck steering column or wheel assembly rotational speed does not exceed this limit.
Q: What material and construction does the BR C15953-30 have?
A: This bearing is constructed from chrome steel with a press-fit steel cage and double shielding. Double shielding provides enhanced contamination resistance, protecting the bearing from dirt and moisture in warehouse and dock environments.
Q: Is the BR C15953-30 interchangeable with other bearings?
A: The BR C15953-30 is interchangeable with C15953-30A. If your steering assembly uses C15953-30A, the BR C15953-30 is a direct equivalent replacement.
Q: Which Barrett lift truck models use the BR C15953-30 bearing?
A: The BR C15953-30 is designed for Barrett electric lift truck steering column assemblies. Verify the 20 mm bore and 40 mm outer diameter match your equipment before ordering.
