Product Description

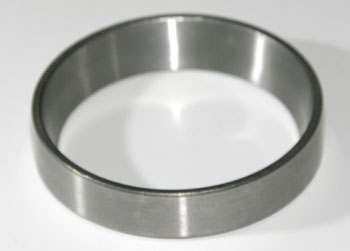

Crown CR 65147 / 065147 bearing cup is a precision taper roller bearing cup, 2.89 inch (73.45 mm) outside diameter by 0.58 inch (14.80 mm) width, fitted to Crown electric lift trucks and pallet jacks. Manufactured from high-carbon bearing steel for high load capacity. Includes OEM and equivalent part numbers. Supersedes and cross-references unavailable.
Specifications
Part Numbers
| OEM Part Number | 065147 |
| Manufacturer Part Number | CR065147 |
| Cross-Reference Part Numbers | 65147 |
Frequently Asked Questions
Q: What is the CR 65147 bearing cup used for?
A: The CR 65147 is a taper roller bearing cup (outer race) designed for Crown electric lift trucks and pallet jacks. It pairs with a matching cone assembly to support wheel or load-handling roller assemblies. The bearing cup is a critical load-bearing component in drive and steering axle systems.
Q: What are the dimensions of the CR 65147 bearing cup?
A: Outside diameter is 2.89 inches (73.45 millimeters) and width is 0.58 inches (14.80 millimeters). The cup has a precision taper geometry that seats the cone assembly. Verify these dimensions match your original bearing before ordering.
Q: What material is the CR 65147 bearing cup made from?
A: The CR 65147 is manufactured from high-carbon bearing steel, providing exceptional hardness and load capacity. This material withstands the rolling contact stresses and shock loads typical of electric lift truck and pallet jack operation. It is engineered for precision fit with matching cone assemblies.
Q: Is the bearing cup a complete bearing assembly or a component?
A: The CR 65147 is the cup (outer race) only and is a component of a complete taper roller bearing assembly. It must be paired with a matching cone assembly (inner race) and rolling elements to function as a complete bearing. When replacing bearings, confirm that both cup and cone assemblies are compatible.
Q: What is the cross-reference part number for the CR 65147?
A: The OEM part number is 065147. Both CR 65147 (manufacturer designation) and 065147 (OEM designation) refer to the same bearing cup. Use either part number when cross-referencing or ordering; they are functionally identical Crown OEM components.
