Product Description

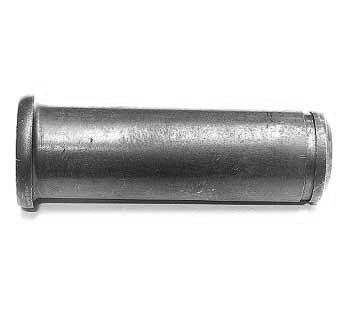

Bishamon BI 12103784 frame pin is a hardened carbon steel component designed for use in the BS-55 and BS-65 manual pallet jack linkage assemblies. Maintains structural connection points within the Blue Label Series chassis. OEM replacement for precise fit and wear resistance.
Compatibility: Fits pallet jacks made by Bishamon, model BS-55. Alternate model: BS55; BS 55. SKU: BI 12103784
Specifications
Dimensional Specifications
| Fits Frame Location | Frame connection pin for BS-55 linkage |
Material & Construction
| Material Specification | Hardened carbon steel |
| Finish | Machine ground, plain finish |
Part Numbers
| OEM Part Number | BI 12103784 |
| Manufacturer Part Number | 12103784 |
| Compatible Models | Bishamon BS-55 manual pallet jack |
| Compatible Model Extension | Bishamon BS-65 manual pallet jack |
Frequently Asked Questions
Q: What is the BI 12103784 Frame Pin and where is it used?
A: The BI 12103784 is a hardened carbon steel frame pin designed for the linkage assemblies of Bishamon BS-55 and BS-65 manual pallet jacks. It maintains structural connection points within the Blue Label Series chassis and provides precise fit and wear resistance.
Q: Which Bishamon pallet jack models use the BI 12103784 Frame Pin?
A: The BI 12103784 is compatible with Bishamon BS-55 and BS-65 manual pallet jacks. Verify your equipment model before ordering to ensure fitment.
Q: What material is the BI 12103784 Frame Pin made from?
A: The BI 12103784 is manufactured from hardened carbon steel with a machine ground, plain finish. This material composition provides strength and resistance to wear and corrosion in the linkage assembly.
Q: What symptoms indicate a frame pin needs replacement?
A: Signs of frame pin wear include looseness or play in the linkage assembly, difficulty lifting or lowering, misalignment of the mast, or visible wear marks or galling at connection points. Replacement restores structural rigidity and smooth operation.
Q: Is the BI 12103784 Frame Pin an OEM or aftermarket part?
A: The BI 12103784 is an OEM replacement frame pin engineered to Bishamon specifications for precise fit and performance within the BS-55 and BS-65 chassis linkage assemblies.
Q: How often should the BI 12103784 Frame Pin be inspected or replaced?
A: The BI 12103784 frame pin is not a scheduled maintenance item under normal operating conditions. Inspect it during regular equipment maintenance if linkage looseness or abnormal movement is detected, and replace only if wear or damage is confirmed.
