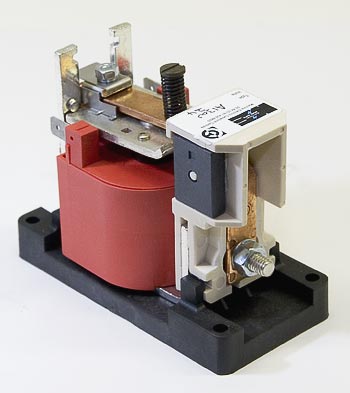

Contactor Assembly for Big Joe Electric Lift Truck

Frequently Asked Questions

Q: What is the BJ 005659 and what voltage rating does it use?
A: The BJ 005659 is a contactor assembly rated for 24 volt operation. This 24VDC rating distinguishes it from the 12VDC units such as the BJ 005656 and BJ 005658. It is designed for Big Joe electric lift trucks and pallet jacks that operate on 24 volt electrical systems rather than 12 volt systems. Voltage compatibility is critical; using a 24V contactor on a 12V system or vice versa will result in failure or no operation.

Q: Which Big Joe electric pallet jacks and lift trucks use 24VDC contactors like the BJ 005659?
A: The BJ 005659 is used in Big Joe electric lift trucks and pallet jacks equipped with 24 volt electrical systems. Before ordering, verify your truck uses 24VDC by checking the battery voltage specification on the equipment nameplate or in the maintenance documentation. Models with 24V systems use this contactor, while 12V models require contactors like the BJ 005656 or BJ 005658.

Q: What are the consequences of installing a 24V contactor on a 12V system?
A: Installing a 24V contactor on a 12V truck will not provide sufficient coil voltage to engage the contactor electromagnet, resulting in no electrical contact closure and complete loss of the circuit function it controls. The device will not operate. Conversely, installing a 12V contactor on a 24V system may cause coil overheating and rapid failure. Always match the contactor voltage to your truck's system voltage.

Q: Which models is the BJ 005659 compatible with?
A: The BJ 005659 is compatible with Big Joe PDH Series, PTW Legacy, PDM, and PMS models. Ensure your equipment is equipped with a 24 volt electrical system before ordering.

Q: What material is the BJ 005659 made from and how durable is it?
A: The BJ 005659 is constructed from durable materials designed for long-term use in industrial environments. It is built to withstand the demands of regular operation and maintain reliable performance over time.

Q: How do I know if the BJ 005659 is the right replacement part for my equipment?
A: To confirm compatibility, check your equipment's model number and verify it is part of the PDH Series, PTW Legacy, PDM, or PMS lineup. Ensure your system operates on a 24 volt electrical setup. If you're unsure, contact our technical team with your equipment details for assistance.
