Product Description

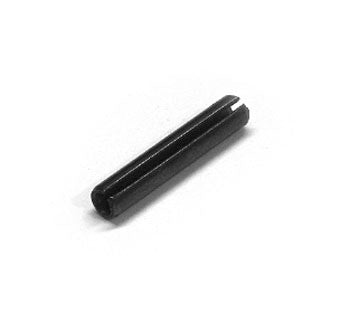

Blue Giant Roll Pin BG 104-063 is an OEM interference-fit cylindrical pin designed for the PT-50 and PT-55 manual pallet jack hydraulic unit handle linkage assemblies. Manufactured from through-hardened medium carbon steel to ANSI B18.8.2 standards, it provides secure mechanical retention for assembly components. Nominal dimensions are 6 mm diameter by 32 mm length, with a dual-end chamfer for installation.
Compatibility: Fits pallet jacks made by Blue Giant, model PT-50 and PT-55. Alternate model: PT50andPT55; PT 50 and PT 55. SKU: BG 104-063
Specifications
Material & Construction
| Material Specification | Through-hardened medium carbon steel (SAE 1040 or equivalent), uncoated |
Part Numbers
| OEM Part Number | BG 104-063 |
Frequently Asked Questions
Q: What is the BG 104-063 roll pin and where is it used?
A: The BG 104-063 is an OEM roll pin designed for Blue Giant PT-50 and PT-55 manual pallet jack hydraulic unit handle linkage assemblies. It provides interference-fit mechanical retention for assembly components in the pump control linkage.
Q: What are the dimensions of the BG 104-063 roll pin?
A: The BG 104-063 is a 6 mm diameter cylindrical pin with a length of 32 mm. It features dual-end chamfer for installation. These dimensions are engineered for PT-50 and PT-55 jacks and are not interchangeable with other sizes or brands.
Q: What material is the BG 104-063 roll pin made from?
A: The BG 104-063 is manufactured from through-hardened medium carbon steel (SAE 1040 or equivalent) to ANSI B18.8.2 standards. It is uncoated and provides high shear strength for secure mechanical retention.
Q: What symptoms indicate the BG 104-063 roll pin needs replacement?
A: Replace the pin if linkage components become loose, rattle, or shift during operation. A missing or sheared pin will allow handle play and inconsistent pump control. Inspect the pin hole for damage; if deformed, the mounting bracket may also require replacement.
Q: What are the cross-reference part numbers for BG 104-063?
A: The OEM part number is BG 104-063 with no documented superseded or equivalent part numbers. Order by exact SKU BG 104-063 for PT-50 and PT-55 compatibility.
