Product Description

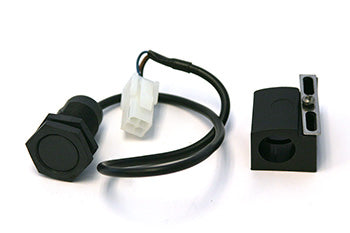

5242288-54 Brake Switch for Yale electric lift trucks. Direct OEM replacement for specific Yale pallet truck models. Features aluminum alloy housing and dual electrical contacts for brake circuit signal and detection. No known cross-reference or superseding part numbers.
Specifications
Electrical Specifications
| Circuit Output | Voltage signal when pedal engaged; 0V signal when pedal not engaged |
Material & Construction
| Main Housing Material | Aluminum alloy |
| Contact Type | Dual electrical contacts |
Part Numbers & Compatibility
| Part Number | 5242288-54 |
| Compatible Truck Models | MPW050EC802, MPW045EB802 (production 8/2005 to 9/2005), MPB040EB827, MPB045EB827 |
Frequently Asked Questions
Q: What is the function of the 5242288-54 brake switch?
A: The 5242288-54 is a brake switch for Yale electric lift trucks that detects brake pedal engagement and signals the vehicle control system. It provides dual electrical contacts for brake circuit signaling and monitoring, delivering voltage output when the pedal is engaged and zero voltage when released.
Q: Which Yale pallet truck models use the 5242288-54 brake switch?
A: The 5242288-54 is a direct OEM replacement for Yale MPW050EC802 and MPW045EB802 (production dates 8/2005 through beginning 9/2005), as well as MPB040EB827 and MPB045EB827 models. Confirm your truck serial number range and production date before ordering.
Q: What is the housing material of the 5242288-54?
A: The 5242288-54 features an aluminum alloy housing that resists corrosion in warehouse environments. The dual electrical contacts inside are rated for standard 12V or 24V control circuits depending on your truck model configuration.
Q: How do I diagnose a faulty 5242288-54 brake switch?
A: Replace the brake switch if the truck does not respond to brake pedal input, if the brake indicator light remains on continuously, or if you observe corrosion or loose connector pins. A failed brake switch compromises vehicle safety and control system function.
