Crown Brake Switch Plug & Pin Kit for WP 3000
CR 130197-004
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

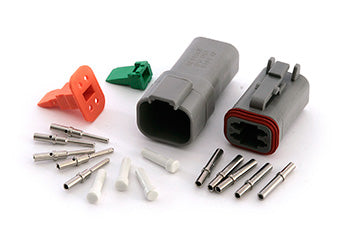

Crown CR 130197-004 Brake Switch Plug & Pin Kit. OEM replacement part for Crown electric pallet trucks, compatible with WP 3000 series. Features a 4-pin keyed nylon plug, brass tin-plated contacts, 12–48VDC switching capability, and direct panel mount configuration for continuous-duty brake switch circuits.
Compatibility: Fits pallet jacks made by Crown, model WP 3000. Alternate model: WP3000. SKU: CR 130197-004
Specifications
Part Numbers & Compatibility
| Make | Crown |
| Model | WP 3000 |
| Manufacturer Part Number | CR 130197-004 |
| Part Number | CR 130197-004 |
| Compatible Equipment Models | Crown WP 3000 Series |
Electrical Specifications
| Voltage Rating | 12VDC to 48VDC switching circuits |
| Current Rating | Up to 5A per circuit |
Performance Specifications
| Operating Mechanical Life | ≥100,000 cycles |
| Duty Cycle | Continuous operation at rated voltage |
| Efficiency Rating | ≥98% electrical conductivity at rated current |
Additional Specifications
| Dielectric Strength | 1000V RMS minimum |
| Insulator Specification | Flame-retardant polyamide (UL94 V-2 class) |
| Service Factor | 1.0 (switching applications) |
| Description | Crown CR 130197-004 Brake Switch Plug & Pin Kit. OEM replacement part for Crown electric pallet trucks, compatible with WP 3000 series. Features a 4-pin keyed nylon plug, brass tin-plated contacts, 12–48VDC switching capability, and direct panel mount configuration for continuous-duty brake switch circuits. |
| Alternate Model | WP3000 |
Frequently Asked Questions
Q: Which Crown models is the CR 130197-004 compatible with?
A: The CR 130197-004 is compatible with Crown WP 3000 series electric pallet trucks.
Q: What materials are used in the CR 130197-004 connector assembly?
A: The CR 130197-004 features a 4-pin keyed nylon plug body with brass tin-plated contacts. The flame-retardant polyamide insulator ensures durability in continuous-duty brake switch service.
Q: How do I know if the CR 130197-004 is the right replacement part for my unit?
A: Verify that your Crown WP 3000 series electric pallet truck requires a brake switch plug and pin kit. Ensure the connector pinout and circuit board configuration match your specific unit before ordering.
Q: What is the function of the CR 130197-004?
A: The CR 130197-004 is a replacement part designed for brake switch circuits on Crown WP 3000 series electric pallet trucks. It provides a direct panel mount configuration for continuous-duty applications.
