Product Description

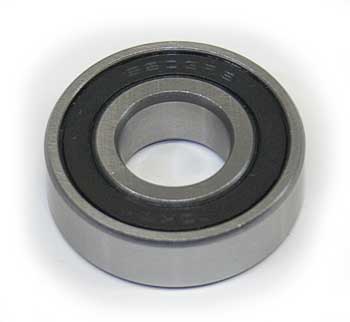

BRG-1039-6 precision sealed bearing assembly for manual pallet jack load and steer wheel applications. Double-sealed, deep groove configuration. Compatible part numbers include BRG10396 and BKBRG-1039-6. Dimensions: 20 mm bore, 47 mm outer diameter, 14 mm width, factory pre-lubricated for extended service life.
Specifications
Dimensional Specifications
| Tolerance Class | ABEC 1 (ISO Class 6) or equivalent |
Material & Construction
| Material Specification | High carbon chromium bearing steel (SAE 52100 or equivalent) |
| Hardness | 58-64 HRC raceway (nominal) |
Part Numbers
| Manufacturer Part Number | BRG-1039-6 |
| OEM Part Number | BRG10396 |
| Cross-Reference Part Numbers | BKBRG-1039-6 (Baker) |
| Equivalent Part Numbers | BRG-1039-6, BRG10396, BKBRG-1039-6 |
Frequently Asked Questions
Q: What are the exact dimensions of the BRG-1039-6 bearing assembly?
A: The BRG-1039-6 has a 20 mm bore, 47 mm outer diameter, and 14 mm width. The bore and outer diameter tolerances are ±0.01 mm for precision fit on manual pallet jack load and steer wheels.
Q: Which manual pallet jack models and brands are compatible with the BRG-1039-6?
A: The BRG-1039-6 is a precision sealed bearing assembly compatible with manual pallet jack load wheel and steer wheel applications across Crown, Toyota, Raymond, Yale, Hyster, and other standard industrial pallet jack manufacturers. Verify dimensions match your equipment before ordering.
Q: What material is the BRG-1039-6 bearing made from?
A: The BRG-1039-6 is constructed from high carbon chromium bearing steel (SAE 52100 or equivalent) with a hardness specification of 58-64 HRC on the raceways. The bearing features a double-sealed, deep groove configuration for extended service life in standard material handling environments.
Q: Are there cross-reference or equivalent part numbers for the BRG-1039-6?
A: The BRG-1039-6 cross-references to BRG10396 (OEM part number) and BKBRG-1039-6 (Baker equivalent). These part numbers refer to the same bearing assembly with identical specifications and dimensions.
Q: Is the BRG-1039-6 pre-lubricated and how often does it require maintenance?
A: The BRG-1039-6 comes factory pre-lubricated to extend service life. The double-sealed design protects against contamination and reduces maintenance frequency compared to open bearing configurations. Monitor for noise, resistance, or heat generation as indicators of bearing wear.
Q: What is the load rating and typical lifespan of the BRG-1039-6?
A: The BRG-1039-6 is designed for standard load wheel and steer wheel duty on manual pallet jacks. Lifespan varies based on load, frequency of use, and environmental conditions. Dual seals protect the bearing in standard warehouse and light outdoor conditions.
