Product Description

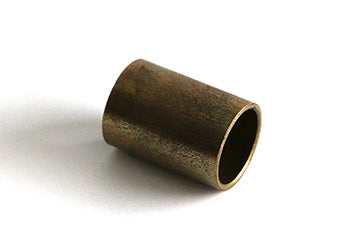

Bronze sleeve bushing, Barrett OEM part number BR 40253-FS000, designed for electric lift truck journal and pivot support. Precision-ground SAE 660 bronze, press-fit mounting, and cross-referenced to Barrett 6597-245 and Nissan NI40253-FS000. Tolerance and dimensional consistency adhere to industrial mechanical standards for replacement and maintenance.
Specifications
Compatibility
| Compatible Equipment Models | Barrett electric lift truck models specified for BR 40253-FS000 bushing; Nissan OEM cross-application for equivalent mount locations |
Dimensional Specifications
| End Chamfer | 0.045 inch at 30° |
Material
| Typical Hardness | Brinell 65-80 |
Part Numbers
| OEM Part Number | BR 40253-FS000 |
| Cross-Reference Part Numbers | Supersedes Barrett 6597-245, equivalent to Nissan NI40253-FS000 |
| Manufacturer Part Number | BR40253-FS000 |
| Alternate Part Number | 40253-FS000 |
| Equivalent Part Number | 40253FS000 |
Frequently Asked Questions
Q: What is the BR 40253-FS000 bronze bushing used for?
A: The BR 40253-FS000 is a precision bronze sleeve bushing designed for electric lift truck journal and pivot support applications. It provides low-friction wear surfaces where shafts rotate or articulate within the lift truck frame assembly.
Q: What are the cross-reference part numbers for BR 40253-FS000?
A: The BR 40253-FS000 supersedes the earlier Barrett part number 6597-245 and is equivalent to Nissan part number NI40253-FS000. When ordering, use the SKU BR 40253-FS000 to ensure you receive the current specification bushing.
Q: What material is the BR 40253-FS000 bushing made from?
A: This bushing is precision-ground from SAE 660 bronze, a high-strength copper-tin alloy with excellent wear resistance and load-carrying capability. Hardness specification is Brinell 65-80. The bushing features a 0.045 inch end chamfer for smooth engagement.
Q: How is the BR 40253-FS000 installed on the lift truck?
A: This bushing uses press-fit mounting into the lift truck pivot or journal bore. Verify dimensions and tolerance specifications match your equipment before ordering. Refer to your lift truck service manual for detailed assembly procedures.
Q: What is the typical lifespan of the BR 40253-FS000 bronze bushing?
A: Bronze bushings like the BR 40253-FS000 typically last 3-5 years under normal operating conditions, depending on load, lubrication, and operating hours. Monitor for excessive play, noise, or resistance in pivot movement as indicators of bushing wear.
