Raymond brush box assembly for forklifts
RA 570-215-216
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

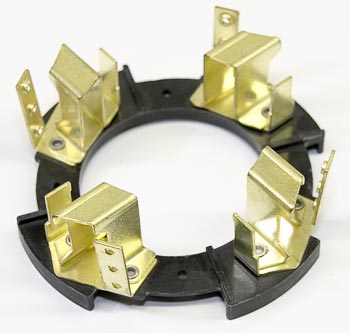

Raymond OEM Brush Box Assembly (RA 570-215-216) with integrated conductive springs for DC traction and lift motor applications on electric lift trucks. Includes high-impact insulated housing, copper alloy contacts, and OEM-compatible mounting pattern. Suitable for 24VDC to 48VDC motor circuits, engineered for industrial electric forklift duty cycles. Supplied as pre-assembled brush box and spring for direct replacement and cross-referenced to multiple OEM and industry part numbers.
Specifications
Part Numbers & Compatibility
| Make | Raymond, Toyota, Hyster, Yale |
| Model | 101, 102XM, 112, 7400, 8300, 8400, 8500, 8600 |
| Part Number | RA 570-215-216 |
| Cross-Reference Part Numbers | TY 00591-17521-81, HY 3019763, TY 00591-30163-81, YT 220002204, YT 220079575, 020018, 084548 |
| Replaces/Supersedes Part Numbers | TY 00591-17521-81 supersedes previous versions; HY 3019763, TY 00591-30163-81 interchangeable applications |
| Equivalent/Interchange Part Numbers | YT 220002204, YT 220079575 |
| Cross Reference Part Numbers | TY 00591-17521-81, HY 3019763, TY 00591-30163-81, YT 220002204, YT 220079575, 020018, 084548 |
| Replaces Supersedes Part Numbers | TY 00591-17521-81 supersedes previous versions; HY 3019763, TY 00591-30163-81 interchangeable applications |
| Equivalent Interchange Part Numbers | YT 220002204, YT 220079575 |
Electrical Specifications
| Voltage Class | Rated for up to 48VDC traction and lift motor circuits (brush application) |
Performance Specifications
| Duty Cycle | Continuous duty, intermittent application compatible (S2/S3 motor service) |
Additional Specifications
| Housing Material | High-impact phenolic or thermoset insulation |
| Contact Surface Finish | Machined to 32 µin Ra maximum |
| Spring Material | Carbon steel, SAE grade, with conductive plating |
| Compatible With | Raymond electric lift truck brush assemblies; applicable to models using OEM brush box RA 570-215-216 and derivatives |
| Description | Raymond OEM Brush Box Assembly (RA 570-215-216) with integrated conductive springs for DC traction and lift motor applications on electric lift trucks. Includes high-impact insulated housing, copper alloy contacts, and OEM-compatible mounting pattern. Suitable for 24VDC to 48VDC motor circuits, engineered for industrial electric forklift duty cycles. Supplied as pre-assembled brush box and spring for direct replacement and cross-referenced to multiple OEM and industry part numbers. |
Frequently Asked Questions
Q: What makes and models is the RA 570-215-216 compatible with?
A: The RA 570-215-216 is compatible with Raymond, Toyota, Hyster, and Yale electric lift trucks. It fits models including 101, 102XM, 112, 7400, 8300, 8400, 8500, and 8600.
Q: What materials is the RA 570-215-216 brush box made from?
A: The RA 570-215-216 features a high-impact insulated housing, copper alloy contacts, and integrated conductive springs. These materials are selected for electrical conductivity, durability, and thermal management in continuous industrial duty cycles.
Q: How do I know if the RA 570-215-216 is the right replacement part for my truck?
A: Verify your truck manufacturer, model, and voltage specification before ordering. The RA 570-215-216 is cross-referenced to multiple Toyota, Hyster, and Yale applications. Ensure the mounting configuration matches your specific truck.
Q: What voltage range does the RA 570-215-216 support?
A: The RA 570-215-216 is engineered for 24vdc to 48vdc motor circuits. Verify your truck voltage specification before ordering.
Q: What are the cross-reference part numbers for the RA 570-215-216?
A: The RA 570-215-216 cross-references to ty 00591-17521-81, hy 3019763, ty 00591-30163-81, yt 220002204, yt 220079575, 020018, and 084548 across Toyota, Hyster, Yale, and other platforms. Verify compatibility with your specific truck manufacturer and model before ordering.
