Product Description

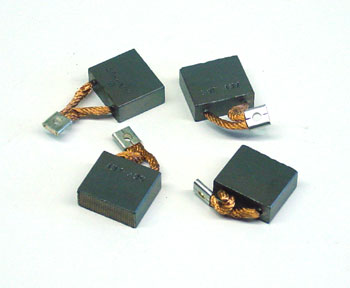

Raymond RA 570-316-516 is a replacement brush set of 4, intended for use in electric lift truck motors. Each brush measures 0.485 inch diameter by 1.255 inch width by 1.150 inch length, designed as a direct replacement for specified Raymond lift truck models.
Specifications
Part Numbers
| OEM Part Number | RA 570-316-516 |
| Manufacturer Part Number | 570-316-516 |
Frequently Asked Questions
Q: What are the brush dimensions for the Raymond RA 570-316-516?
A: Each brush in the RA 570-316-516 set measures 0.485 inch diameter, 1.255 inch width, and 1.150 inch length. Verify these dimensions match your original brush specifications before ordering to ensure proper fitment in your motor brush holders.
Q: How many brushes are in the RA 570-316-516 replacement set?
A: The RA 570-316-516 is a set of four replacement brushes designed for Raymond electric lift truck motors. This is a direct replacement quantity that restores a complete brush set in four-pole motor configurations.
Q: Which Raymond electric lift truck models use the RA 570-316-516 brush set?
A: The RA 570-316-516 is intended for use in specified Raymond electric lift truck models with motors requiring brushes of these specific dimensions (0.485 x 1.255 x 1.150 inch). Confirm the original part number on your equipment nameplate to verify compatibility.
Q: What is the difference between the RA 570-316-516 and RA 570-277-516 brush sets?
A: These are separate brush set configurations for different Raymond motor models. The RA 570-316-516 features brushes with specific dimensions (0.485 x 1.255 x 1.150 inch) designed for particular motor types, while the RA 570-277-516 serves other motor configurations. Cross-reference your OEM part number to select the correct set.
Q: How should brush dimensions be verified before ordering the RA 570-316-516?
A: Measure your original brushes or check the motor specification sheet for brush dimensions. The RA 570-316-516 brushes must match existing brush holder and commutator geometry for proper fitment and electrical contact. If dimensions do not match, select an alternate brush set.
