Product Description

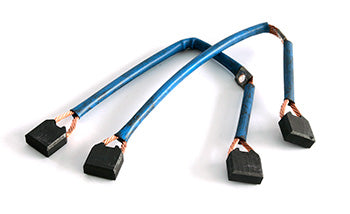

Clark CL 921583 carbon brush set is designed for use in electric lift truck DC traction or pump motors. Manufactured from high conductivity carbon-graphite material, each set includes four flat brushes with spring steel tails and copper wire leads, engineered for secure fitment in Clark motor brush holders. Intended for OEM replacement in Clark electric lift equipment.
Specifications
Electrical
| Brush Voltage Rating | Suitable for use with DC motors rated up to 48VDC |
Material & Construction
| Brush Material | Electrically conductive carbon-graphite |
| Spring Material | Spring steel per ASTM A228 |
Part Numbers
| OEM Part Number | CL 921583 |
Frequently Asked Questions
Q: What is the CL 921583 carbon brush set used for?
A: The CL 921583 is a carbon brush set designed for Clark electric lift truck DC traction and pump motors. Each set includes four flat brushes with spring steel tails and copper wire leads for electrical contact in DC motor assemblies.
Q: What is the voltage rating for the CL 921583 carbon brushes?
A: The CL 921583 carbon brush set is rated for use with DC motors up to 48VDC. This voltage specification applies to Clark electric lift trucks equipped with standard 24VDC or 48VDC DC traction motor systems.
Q: What material are the CL 921583 brushes made from?
A: The CL 921583 brushes are manufactured from high-conductivity carbon-graphite material. The tails are made from spring steel per ASTM A228 specification, and leads are copper wire for secure connection to motor brush holders.
Q: How do you know when CL 921583 carbon brushes need replacement?
A: Replace carbon brushes when they are worn to approximately one-quarter inch in length, or if you observe arcing, sparking, or loss of motor power. Regular inspection prevents motor damage and extends motor life.
Q: Which Clark electric lift trucks use the CL 921583 brush set?
A: The CL 921583 is an OEM replacement for Clark electric lift trucks with DC traction or pump motors. Verify your truck model, motor type, and amperage rating before ordering to ensure compatibility with your specific equipment.
