Product Description

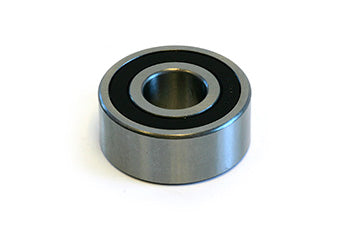

Double row angular contact ball bearing, part number 5305-2RS, with 25 mm bore, 62 mm outer diameter, 25.4 mm width, rubber-sealed, constructed from high-grade chrome steel, and interchangeable with 3305-2RS and related cross-reference numbers. Designed for medium-duty load support in manual pallet truck wheel assemblies.
Specifications
Material & Construction
| Inner/Outer Ring Material | SAE 52100 chrome steel |
| Enclosure Type | Rubber seals (2RS) on both sides |
Part Numbers
| Manufacturer Part Number | 5305-2RS |
| Cross-Reference Part Numbers | Interchange to 3305, 3305A, 3305 ATN9-2RS, FAG 3305B.2RSR, SKF 5305A-2RS |
| Supersedes/Equivalent | Replaces 3305-2RS, equivalent to 5305-2RS-JTEKT, Nachi 5305-2NS |
Frequently Asked Questions
Q: What are the dimensions of the BS 5305 2RS bearing?
A: The BS 5305 2RS has a 25 mm bore, 62 mm outer diameter, and 25.4 mm width. Verify these measurements match your manual pallet truck wheel assembly before ordering.
Q: What are the equivalent cross-reference part numbers?
A: The BS 5305 2RS is interchangeable with 3305, 3305A, 3305 ATN9-2RS, FAG 3305B.2RSR, SKF 5305A-2RS, 5305-2RS-JTEKT, and Nachi 5305-2NS. Confirm compatibility with your specific manual pallet truck model.
Q: What material is the bearing constructed from?
A: The inner and outer rings are made from SAE 52100 chrome steel, which provides excellent wear resistance and durability for medium-duty load support in pallet truck wheel assemblies.
Q: What type of sealing does this bearing have?
A: The BS 5305 2RS features rubber sealing on both sides, indicated by the 2RS designation. This provides protection against water, dirt, and contamination in warehouse and outdoor environments.
Q: What load range is this bearing designed for?
A: The BS 5305 2RS is a double row angular contact bearing designed for medium-duty load support, making it suitable for standard manual pallet truck wheel assemblies and comparable industrial equipment.
