Product Description

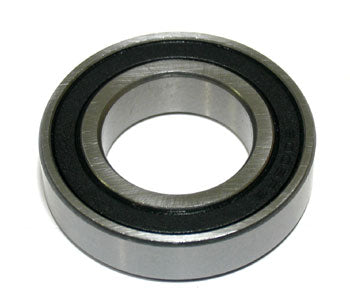

BS 6006 1RS is a single row deep groove ball bearing featuring 30mm bore, 55mm outside diameter, 13mm width, and one rubber shield. Constructed from chrome steel, it meets standard specifications for extra light 6000 series bearings and offers dynamic load ratings in the 13.2–13.8 kN range. Designed for manual pallet jack applications and cross-references to 6006-RS equivalents from SKF, ISB, and Timken. No direct cross-reference part numbers available for BS 6006 1RS.
Specifications
Material & Construction
| Bearing Material | Chrome steel (SAE 52100 or equivalent) |
Part Numbers
| Cross-Reference Part Numbers | Equivalent to 6006-RS (SKF, ISB, Timken). No exact cross-reference part numbers for BS 6006 1RS available |
| OEM Part Number | 6006-RS |
Frequently Asked Questions
Q: What are the dimensions of the BS 6006 1RS bearing?
A: The BS 6006 1RS has a bore diameter of 30mm, outside diameter of 55mm, and width of 13mm. This is a standard extra-light 6000-series bearing size used in load wheels and drive assemblies for manual and electric pallet jacks.
Q: What does the 1RS designation mean on this bearing?
A: The 1RS designation indicates a single rubber seal on one side of the bearing. This provides protection against dust and moisture while retaining factory grease. The open (unsealed) side allows some air circulation and reduces seal friction compared to dual-seal 2RS bearings.
Q: What material is the BS 6006 1RS bearing made from?
A: The BS 6006 1RS is constructed from chrome steel (SAE 52100 or equivalent), which provides corrosion resistance and durability. Chrome steel meets the specifications for extra-light 6000-series deep groove ball bearings used in material handling equipment.
Q: What are the cross-reference part numbers for the BS 6006 1RS?
A: The BS 6006 1RS is equivalent to 6006-RS from SKF, ISB, and Timken manufacturers. No exact cross-reference part numbers exist for the BS 6006 1RS variant designation, but it is functionally equivalent to their 6006-RS offerings with single rubber seal.
Q: Which manual pallet jack models use the BS 6006 1RS bearing?
A: The BS 6006 1RS is used in various manual pallet jacks and load-lifting equipment from major manufacturers. Confirm compatibility by verifying your equipment has a 30mm bore and 55mm outer diameter space. Check the exact model and serial range before ordering.
Q: What is the dynamic load rating for the BS 6006 1RS?
A: The BS 6006 1RS provides dynamic load ratings in the 13.2-13.8 kN range, which is suitable for standard manual pallet jack and light-duty electric pallet jack applications. Verify that your equipment load capacity and duty cycle do not exceed this rating.
