Product Description

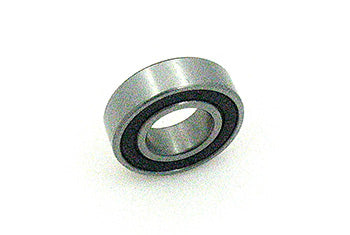

BS 6205-2RS-1 is a deep groove ball bearing specified for manual pallet jack parts, featuring a 1.00 inch (25.4 mm) bore, 52 mm outer diameter, 15 mm width, contact rubber seals, and ABEC 3 precision. Equivalent to 6205-2RS-1, 6205-2RS, and compatible as a replacement for 6205-2RS1 and 6205-2RS-16. Ideally used in industrial rotating shaft applications with moderate loads and speeds.
Specifications
Bearing Specifications
| Bearing Type | Deep Groove Ball Bearing |
| Bore Diameter | 1.00 inch (25.4 mm) |
| Outer Diameter | 52 mm (2.047 inches) |
| Width | 15 mm (0.591 inches) |
| Seal Design | Rubber Contact Seals Both Sides (2RS) |
| Precision Rating | ABEC 3 |
| Lubrication | Pre-lubricated, sealed from factory |
| Application | Industrial rotating shaft applications with moderate loads and speeds; manual pallet jacks and material handling equipment |
Cross-Reference Information
| Direct Replacement Part Numbers | 6205-2RS-1, 6205-2RS, 6205-2RS1, 6205-2RS-16 |
| Primary Part Number | BS 6205-2RS-1 |
Frequently Asked Questions
Q: What are the specifications of the BS 6205-2RS-1 bearing?
A: The BS 6205-2RS-1 is a deep groove ball bearing with a 1.00 inch (25.4 mm) bore, 52 mm outer diameter, 15 mm width, contact rubber seals, and ABEC 3 precision rating.
Q: What cross reference and equivalent part numbers exist for this bearing?
A: The BS 6205-2RS-1 is equivalent to 6205-2RS-1, 6205-2RS, 6205-2RS1, and 6205-2RS-16. It replaces 6205-2RS-1 and supersedes 6205-2RS while remaining interchangeable with these variants.
Q: What type of seal design does this bearing have?
A: The BS 6205-2RS-1 features contact rubber seals on both sides (2RS designation), which provide effective protection against contamination and maintain internal lubrication in industrial rotating applications.
Q: What applications does the BS 6205-2RS-1 perform in?
A: This bearing is ideally suited for industrial rotating shaft applications with moderate loads and speeds, including manual pallet jack components and similar material handling equipment.
Q: Why is this bearing pre-lubricated?
A: The BS 6205-2RS-1 comes pre-lubricated and sealed from the factory, allowing immediate installation without additional lubrication and reducing maintenance while extending bearing life in normal operating conditions.
Q: Which OEM equipment brands use this bearing specification?
A: The BS 6205-2RS-1 bearing is compatible with manual pallet jacks and components from major manufacturers including Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, and BT.
