Product Description

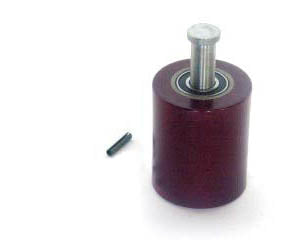

BT 15881-SUPER is a manual pallet jack wheel assembly for BT models L2000-U, L2300-U, and LHM-230, featuring a 3 inch diameter polyurethane wheel with 3.75 inch tread width, 25 mm bore, and 6303 sealed precision ball bearings. OEM and cross-reference part numbers include 15881, 126728, 131688, 167609. Compatible with BT manual pallet jack series. Maximum static load capacity is 1400 lbs.
Specifications
Material & Construction
| Wheel Material | Polyurethane |
| Bearing Type | 6303 sealed precision ball bearings |
Dimensions & Specifications
| Wheel Diameter | 3 inch |
| Tread Width | 3.75 inch |
| Bore Size | 25 mm |
| Maximum Load Capacity | 1400 lbs |
Part Numbers
| Direct Replacement Part Number | 15881 |
| Cross-Reference Part Numbers | 126728, 131688, 167609 |
| Compatible Models | BT L2000-U, BT L2300-U, BT LHM-230 |
Frequently Asked Questions
Q: Which BT manual pallet jack models use the BT 15881-SUPER wheel assembly?
A: The BT 15881-SUPER is compatible with BT manual pallet jack models L2000-U, L2300-U, and LHM-230. Confirm your model number before ordering to ensure proper fitment.
Q: What are the wheel diameter and tread width specifications for the BT 15881-SUPER?
A: The BT 15881-SUPER wheel has a 3 inch diameter with a 3.75 inch tread width. The bore size is 25 mm. These dimensions are critical for clearance verification with your pallet jack frame.
Q: What bearing type is used in the BT 15881-SUPER?
A: The BT 15881-SUPER is equipped with 6303 sealed precision ball bearings. These sealed bearings reduce maintenance and protect against dust and moisture ingress in warehouse environments.
Q: What is the load capacity of the BT 15881-SUPER wheel?
A: The BT 15881-SUPER has a maximum static load capacity of 1400 pounds per wheel. Verify total load does not exceed the pallet jack capacity and that load is balanced across all wheels.
Q: What cross-reference and equivalent part numbers apply to the BT 15881-SUPER?
A: The BT 15881-SUPER is cross-referenced as part numbers 15881, 126728, 131688, and 167609. Use any of these numbers when searching for replacements or verifying compatibility with your current inventory.
Q: What material is the BT 15881-SUPER wheel made from?
A: The BT 15881-SUPER wheel is constructed from polyurethane with a precision sealed bearing. Polyurethane provides good floor grip, moderate wear resistance, and is suitable for standard warehouse and dock operations.
