Product Description

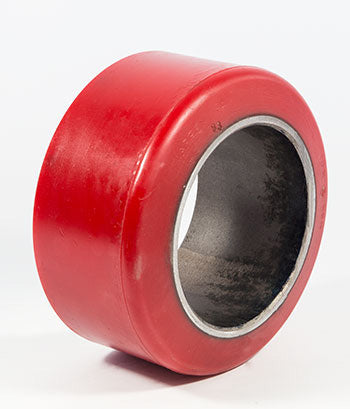

Polyurethane press-on wheel, OEM part number BT 20071-03 for BT electric lift trucks. Constructed using abrasion-resistant polyurethane tread bonded to SAE 1045 steel core. Wheel diameter nominally 8.00 inches, tread width 2.75 inches, bore 2.00 inches for standard axle mounting. Rated for 3850 lbs at 24 inch load center. Supplied without bearings, compatible with standard 6204-2RS ball bearing. Mounting by press fit on hub. No known cross-reference or superseding part numbers.
Specifications
Dimensional Specifications
| Clearance Requirement | Minimum 0.125 inch clearance from fender or truck body |
Material & Construction
| Core Material | Machined steel core |
| Polyurethane Hardness | Shore A 95 ±2 |
| Bond Strength | Polyurethane to steel bond exceeds 2200 PSI shear strength |
Part Numbers & Compatibility
| OEM Part Number | BT 20071-03 |
Performance Specifications
| Service Factor | 1.10, suitable for continuous warehouse duty |
| Efficiency | 98% rolling efficiency under rated load |
Frequently Asked Questions
Q: What are the specifications of the BT 20071-03 wheel?
A: The BT 20071-03 is a polyurethane press-on wheel with nominal diameter of 8.00 inches, tread width 2.75 inches, and bore diameter 2.00 inches. It has a load rating of 3850 lbs at 24 inch load center. Verify these dimensions match your equipment axle before ordering.
Q: What is the polyurethane hardness rating of the BT 20071-03?
A: The BT 20071-03 polyurethane tread is Shore A 95 ±2 hardness, providing abrasion resistance for warehouse duty. The polyurethane to steel bond exceeds 2200 PSI shear strength for durability.
Q: What core material is used in the BT 20071-03?
A: The BT 20071-03 has a machined steel core constructed from SAE 1045 steel. The abrasion-resistant polyurethane tread is bonded to this steel core for structural integrity and load capacity.
Q: What bearing type is compatible with the BT 20071-03?
A: The BT 20071-03 is supplied without bearings. It is compatible with standard 6204-2RS ball bearings for axle mounting. The wheel mounts by press fit on the hub. Contact us if you need bearing specifications for your equipment.
Q: What is the rolling efficiency of the BT 20071-03 under load?
A: The BT 20071-03 achieves 98 percent rolling efficiency under rated load, making it suitable for continuous warehouse duty. It has a service factor of 1.10 for ongoing reliable performance in material handling applications.
Q: Are there cross-reference part numbers for the BT 20071-03?
A: No known cross-reference or superseding part numbers are published for the BT 20071-03. This is an OEM-specification wheel for BT electric lift trucks. Contact us with your equipment model if you need fitment confirmation.
