Product Description

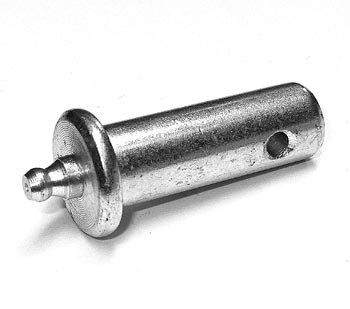

Shoulder pin for BT L2000, L2300, L2000U, L2300U, and LHM230 Series 11 and 12 manual pallet jack frames. Manufactured from alloy steel with case hardened surface treatment, this pin serves as a vertical pivot for frame joints, enabling controlled movement during lifting and lowering operations. Direct replacement part designed for reliable performance in frame assemblies.
Specifications
Dimensional Specifications
| Compatible Assembly Drawing Reference | Frame group, BT L2000/L2300 Series 11 and 12 |
Material
| Base Material | Alloy steel, case hardened |
| Surface Finish | Plain finish |
Part Numbers
| Manufacturer Part Number | BT 166701 |
| Cross-Reference Numbers | No documented cross-references or superseded part numbers |
| Compatible Models | BT L2000, BT L2300, BT L2000U, BT L2300U, BT LHM230 Series 11 and Series 12 |
Frequently Asked Questions
Q: What BT pallet jack models does the BT 166701 shoulder pin fit?
A: The BT 166701 shoulder pin is compatible with BT L2000, L2300, L2000U, L2300U, and LHM230 Series 11 and 12 manual pallet jacks. This OEM part fits the frame group assembly for these models.
Q: What material is the BT 166701 shoulder pin made from?
A: The BT 166701 is made from alloy steel with a plain finish and case hardened surface treatment. This construction provides wear resistance at the pivoting frame joints where the pin is installed vertically.
Q: What is the function of the BT 166701 shoulder pin in a pallet jack?
A: The BT 166701 serves as a vertical pivot pin for the frame joints on manual pallet jacks. It enables controlled movement between frame components during lifting and lowering operations.
Q: Are there cross-reference part numbers for the BT 166701?
A: The BT 166701 (manufacturer part number 166701) does not have documented cross-reference or superseded part numbers. This is the OEM part for the specified BT models.
