Product Description

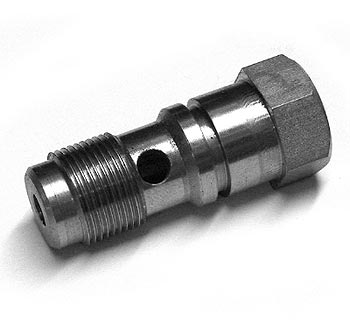

BT 129209 Release Pin Guide for BT Prime Mover L2000, L2300, L2000-U, and L2300-U manual pallet jack hydraulic units. OEM precision-machined case-hardened steel component for release linkage retention. Includes mechanical, material and dimensional specifications.
Compatibility: Fits pallet jacks made by BT, model L2000, L2300, L2000-U, L2300-U. Alternate model: L2000,L2300,L2000U,L2300U; L2000, L2300, L2000 U, L2300 U. SKU: BT 129209
Specifications
Material
| Material Specification | SAE 1045 steel, machined and finished |
| Hardness | Rockwell C35 minimum |
Part Numbers
| OEM Part Number | 129209 |
| Manufacturer Part Number | BT 129209 |
| Compatible with Models | BT Prime Mover L2000, L2300, L2000-U, L2300-U |
Performance
| Rated Cycles | 120 cycles/hour (manual release operation) |
| Service Life | Tested to 25,000 actuation cycles without failure |
Frequently Asked Questions
Q: What is the BT 129209 Release Pin Guide?
A: The BT 129209 is an OEM precision-machined release pin guide for BT manual pallet jacks. This case-hardened steel component provides precision guidance and retention for the release linkage pin, ensuring reliable handle actuation and smooth lift-hold-lower operation.
Q: Which BT pallet jack models are compatible with the BT 129209?
A: The BT 129209 is designed for BT Prime Mover manual pallet jacks including L2000, L2300, L2000-U, and L2300-U models. Verify your equipment model and serial number to confirm compatibility before ordering.
Q: What material specification and hardness does the BT 129209 have?
A: The BT 129209 is manufactured from SAE 1045 steel, machined and finished to specification with a minimum Rockwell C35 hardness rating. This hardness level ensures the guide resists wear from repeated pin cycling while maintaining dimensional accuracy for proper linkage alignment.
Q: What is the rated service cycle capacity of the BT 129209?
A: The BT 129209 is rated for 120 manual release operation cycles per hour under normal service conditions. Actual service life depends on load stress, maintenance practices, and alignment of the release linkage assembly. Inspect the guide regularly for wear or binding.
Q: How do I identify if the BT 129209 needs replacement?
A: Replace the BT 129209 if the handle feels loose, sticky, or unresponsive; if the release pin moves laterally or has excessive play; if you observe visible wear grooves or damage to the guide bore; or if the jack fails to hold load smoothly. Worn guides compromise hydraulic control and operator safety.
Q: Are there cross-reference or alternate part numbers for the BT 129209?
A: No cross-reference or superseded part numbers are documented for the BT 129209. This is the OEM part designed specifically for BT Prime Mover L2000 and L2300 series jacks. Always order using the OEM part number to ensure exact fit and performance.
