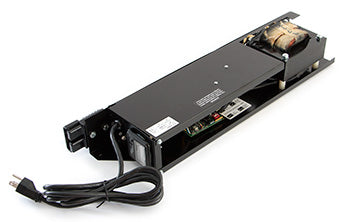

24V Battery Charger for BT Prime Mover SMX45, Raymond 102T-F45L, Toyota 7HBW23, 8HBW23
PR 313799-001
Battery chargers are model-, voltage-, battery chemistry-, connector-, and sometimes serial-number specific. Using an incompatible charger may result in battery damage, equipment damage, or safety hazards.
Before ordering, confirm:
- Truck make and model
- Serial number
- Battery voltage
- Battery type (lead-acid vs lithium)
- Connector style
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Battery chargers are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description
Prime Mover PR 313799-001 24V battery charger engineered for electric lift trucks, including models BT Prime Mover SMX45, Raymond, and Toyota electric pallet trucks. Features cross-referenced part numbers for direct replacement and supports multiple battery chemistries. Technical specifications include 24VDC output, 15A max current, and heavy-duty cast metal enclosure.
Compatibility: Fits pallet jacks made by BT Prime Mover, model SMX 45. SKU: PR 313799-001
Specifications
Part Numbers & Compatibility
| Make | BT Prime Mover, Raymond, Toyota |
| Model | SMX45, 102T-F45L, 7HBW23, 8HBW23 |
| Primary Part Number | PR 313799-001 |
| Manufacturer Part Number | 313799-001 |
| Alternate Part Numbers | BT313799-001, BT313799001, 313799001, PM313799-001, RA313799-001 |
| Cross-Reference Part Numbers | Replaces RA850-138-139-02, RA939-353/284, RA939-353-286, RA939-352-207, Toyota 00590-43337-71 |
| Cross Reference Part Numbers | Replaces RA850-138-139-02, RA939-353/284, RA939-353-286, RA939-352-207, Toyota 00590-43337-71 |
Electrical Specifications
| Voltage | 24 V |
| Amperage | 15 A |
| Charge Profile | lead-acid, sealed |
| Battery Chemistry | lead-acid |
| Output Voltage - Charging | 28VDC |
| Output Voltage - Float | 27VDC |
| Maximum Output Current | 15A DC |
| Maximum AC Input Current | 6A |
Additional Specifications
| Input Frequency | 60 Hz |
| Enclosure Material | Heavy-duty cast metal |
Frequently Asked Questions
Q: What is the electrical output specification of the PR 313799-001 charger?
A: The PR 313799-001 produces 24VDC output with a maximum current rating of 15A. This output is designed for the 24-volt battery systems used in BT Prime Mover, Raymond, and Toyota electric lift trucks.
Q: Which models is the PR 313799-001 compatible with?
A: The PR 313799-001 charger is compatible with BT Prime Mover SMX45, Raymond 102T-F45L, and Toyota 7HBW23, 8HBW23 models. Ensure your equipment uses a 24VDC battery system before ordering.
Q: What are the cross-reference part numbers for this charger?
A: The PR 313799-001 can also be referenced as BT313799-001, BT313799001, 313799001, PM313799-001, and RA313799-001. It replaces Raymond part numbers RA850-138-139-02, RA939-353/284, RA939-353-286, RA939-352-207, and Toyota 00590-43337-71.
Q: What battery chemistry does this charger support?
A: The PR 313799-001 is designed for lead-acid, sealed battery systems. Verify your specific battery type matches the charger output specifications before use.
Q: What is the connector type for this charger?
A: The PR 313799-001 uses a standard connector type compatible with lead-acid, sealed battery systems. Ensure the connector matches your equipment's specifications.
Q: How do I know if this charger is the right replacement for my equipment?
A: Verify your equipment uses a 24VDC battery system and is compatible with the PR 313799-001. Check the model number against the list of supported models for accurate replacement.
