Circuit Breaker for Prime Mover SMX45 Walkie
PR 301890-003
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

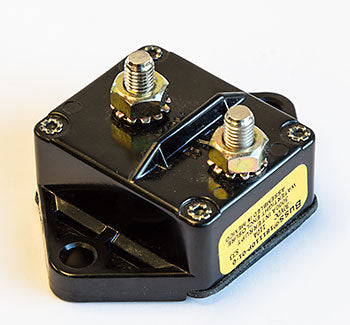

Prime Mover PR 301890-003 Circuit Breaker is a single-pole, manual reset breaker rated for 30 VDC and 110 amperes. Designed for Prime Mover electric lift truck applications, it features a panel mount chassis, stud terminals, and cross-references to Raymond 939-352-250 and BT301890-003. The impact-resistant thermoplastic case and silver-plated copper alloy contacts provide robust protection for industrial electric lift circuits.
Compatibility: Fits pallet jacks made by BT Prime Mover, model SMX 45 Walkie Pallet Truck. SKU: PR 301890-003
Specifications
Part Numbers & Compatibility
| Make | Prime Mover, BT, Raymond |
| Model | SMX45, 102XM |
| Part Number | PR 301890-003 |
| Manufacturer Part Number | PM301890-003 |
| Cross-Reference Part Numbers | Supersedes BT301890-003; Equivalent to Raymond 939-352-250 |
| Compatible Equipment Models | Prime Mover SMX45 Walkie Electric Lift Truck |
| Cross Reference Part Numbers | Supersedes BT301890-003; Equivalent to Raymond 939-352-250 |
Electrical Specifications
| Rated Voltage | 30 VDC |
| Current Rating | 110 Amperes |
Performance Specifications
| Operating Mechanism | Toggle lever, manual reset |
Additional Specifications
| Terminal Type | Stud terminal, 1/4 inch-28 UNF thread |
| Replaces/Supersedes | BT301890-003, pm301890-003 |
| Typical Trip Time | 4-8 seconds at 200% rated current |
| Replaces Supersedes | BT301890-003, pm301890-003 |
| Description | Prime Mover PR 301890-003 Circuit Breaker is a single-pole, manual reset breaker rated for 30 VDC and 110 amperes. Designed for Prime Mover electric lift truck applications, it features a panel mount chassis, stud terminals, and cross-references to Raymond 939-352-250 and BT301890-003. The impact-resistant thermoplastic case and silver-plated copper alloy contacts provide robust protection for industrial electric lift circuits. |
Frequently Asked Questions
Q: Which models is the PR 301890-003 compatible with?
A: The PR 301890-003 is compatible with Prime Mover SMX45 and BT 102XM models. Verify your specific model and serial range before ordering to ensure correct fitment.
Q: What materials are used in the construction of the PR 301890-003?
A: The PR 301890-003 is built with an impact-resistant thermoplastic case and silver-plated copper alloy contacts, ensuring durability and reliable performance in industrial environments.
Q: How do I know if the PR 301890-003 is the right replacement part for my equipment?
A: Check your equipment's make and model against the compatible models listed. The PR 301890-003 is designed to replace earlier versions from BT and Raymond in compatible equipment.
Q: What are the key features of the PR 301890-003?
A: This circuit breaker features a panel mount chassis, stud terminals, and is designed for robust power circuit protection in electric lift truck applications.
