Product Description

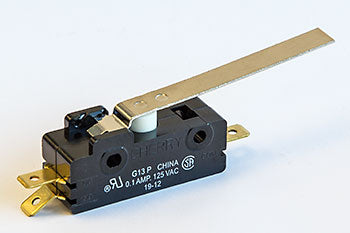

Lift limit switch PR 20208-01 for Prime Mover SMX45 walkie electric lift truck. Features SPDT contact configuration, molded thermoplastic housing, panel mount design, rated 5A at 120VAC, compatible with Prime Mover SMX45. No equivalent cross-reference part numbers available.
Compatibility: Fits pallet jacks made by Prime Mover, model SMX45. SKU: PR 20208-01
Specifications
Electrical
| Switch Rating | Rated 5A at 120VAC, 2A at 24VDC |
Material
| Housing Material | Molded thermoplastic, UL94-V0 rated |
| Actuator Finish | Brushed stainless steel, matte finish |
Part Numbers
| OEM Part Number | PR 20208-01 |
| Manufacturer Part Number | PR 20208-01 |
| Compatible Models | Prime Mover SMX45 Walkie Electric Lift Truck |
Performance Specifications
| Service Life | Rated for 100,000 actuation cycles at full load |
Frequently Asked Questions
Q: What is the voltage rating and current capacity of the PR 20208-01 lift limit switch?
A: The PR 20208-01 is rated 5A at 120VAC or 2A at 24VDC. This dual-voltage capability allows it to work in both AC and DC lift truck control circuits, making it versatile for different Prime Mover models.
Q: Which Prime Mover model does the PR 20208-01 fit?
A: The PR 20208-01 is specifically designed for Prime Mover SMX45 walkie electric lift truck models. This switch is a direct OEM replacement for SMX45 lift limit applications.
Q: What contact configuration does the PR 20208-01 have?
A: The PR 20208-01 features an SPDT (single-pole, double-throw) contact configuration. This allows the switch to both make and break circuits, providing flexible control options for lift limit sensing and height control functions.
Q: What materials are used in the PR 20208-01 housing and actuator?
A: The PR 20208-01 is constructed with molded thermoplastic housing rated UL94-V0 for flame resistance. The actuator has a brushed stainless steel finish with a matte appearance, providing corrosion resistance in warehouse and outdoor environments.
Q: Is the PR 20208-01 a direct replacement for Prime Mover SMX45 limit switches?
A: Yes, the PR 20208-01 is an OEM part designed as a direct fit for Prime Mover SMX45 walkie electric lift trucks. No cross-reference or equivalent part numbers are available. Use only the PR 20208-01 to ensure proper operation and warranty compliance.
Q: What is the typical service environment for the PR 20208-01?
A: The PR 20208-01 is built for industrial warehouse and material handling environments. Its UL94-V0 rated thermoplastic housing and stainless steel actuator provide durability against moisture, temperature fluctuations, and mechanical wear in lift truck applications.
