Product Description

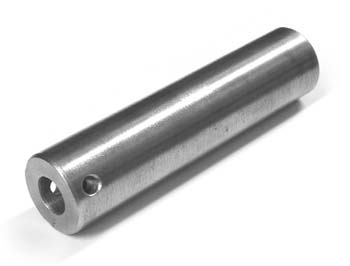

Lift-Rite OEM Bulkhead Eye Pin LF PL-20204—precision-machined steel pin for main frame and linkage articulation on manual pallet jacks. Supports heavy cyclic loading and compatible with LCM, LCU, LS80, and Titan series models. Equivalent to PL-20204, LRPL20204, and LFPL20204. Supersedes prior part numbers in the Lift-Rite manual pallet jack family.
Compatibility: Fits pallet jacks made by Lift-Rite, model PL-20204. Alternate model: PL20204; PL 20204. SKU: LF PL-20204
Specifications
Material
| Material Specification | High strength carbon steel (specification not explicitly stated) |
Part Numbers
| OEM Part Number | PL-20204 |
| Manufacturer Part Number | LF PL-20204 |
| Cross-Reference Part Numbers | Supersedes Life Rite PL20204, LFPL20204, LRPL20204 |
| Replaces | PL-20204, Life Rite PL20204 |
| Equivalent Part Numbers | PL-20204, LFPL20204, LRPL20204 |
Frequently Asked Questions
Q: What is the LF PL-20204 bulkhead eye pin and what does it do?
A: The LF PL-20204 is a precision-machined steel pin that serves as a pivot connection point in the main frame and linkage articulation system of Lift-Rite manual pallet jacks. The eye design allows for rotational movement of the linkage components during lifting cycles. This pin is critical for proper jack operation and load transfer.
Q: What material and specifications define the LF PL-20204?
A: The LF PL-20204 is manufactured from high-strength carbon steel with precision machining to ensure tight tolerances and smooth rotation. The OEM part number is PL-20204. Cross-reference equivalents include LFPL20204, LRPL20204, and PL20204. The pin is designed to support heavy cyclic loading typical in manual pallet jack operations.
Q: Which Lift-Rite pallet jack models use the LF PL-20204 bulkhead eye pin?
A: The LF PL-20204 is compatible with Lift-Rite LCM, LCU, LS80, and Titan series manual pallet jacks. It also replaces earlier part number designations used in the Lift-Rite manual pallet jack family. If your model is not listed, verify the part number on your jack documentation before ordering.
Q: How do I identify if the LF PL-20204 pin is worn or damaged?
A: Symptoms of pin wear or damage include excessive play or wobbling in the linkage, difficulty raising or lowering the jack smoothly, creaking or grinding noises during operation, or visible bending or scoring on the pin surface. A worn pin compromises load distribution and increases stress on adjacent components. Replacement restores proper alignment and operation.
Q: What is the difference between LF PL-20204 and the superseded part numbers?
A: The LF PL-20204 designation supersedes earlier part numbers PL-20204, LRPL20204, and LFPL20204 in the Lift-Rite manual pallet jack family. While these part numbers may reference the same component, using the current LF PL-20204 designation ensures you receive parts engineered to current specifications and sourced from current manufacturing batches. For older equipment, confirm compatibility with your specific model year and serial range.
Q: How does pin diameter and length affect fitment of the LF PL-20204?
A: The LF PL-20204 is precision-machined to exact diameter and length specifications to fit the bulkhead eye bore and linkage pivot holes on compatible models. Using an incorrectly sized pin will result in binding, excessive play, or misalignment of the linkage system. Always verify pin dimensions match your equipment documentation before ordering or installing.
