Product Description

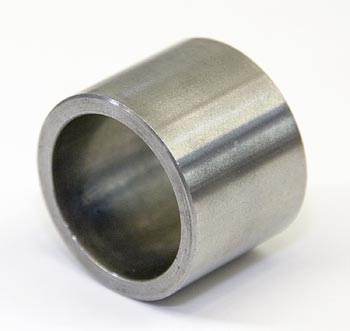

Crown CR 065117-2 bushing, OEM replacement for PE 4000 series electric pallet trucks. Manufactured from sintered iron with 1.006-inch ID, 1.253-inch OD, 1.25-inch overall length. Press-fit style with machined groove and hole. Rated for up to 8000 lbs capacity.
Specifications
Product Overview
| Part Number | CR 065117-2 |
| Manufacturer Part Number | 065117-002 |
| Replaces | 065117-001 |
Physical Specifications
| Material | Sintered Iron |
| Inner Diameter | 1.006 inches |
| Outer Diameter | 1.253 inches |
| Overall Length | 1.25 inches |
| Style | Press-Fit |
| Features | Machined groove and lubrication hole |
| Capacity Rating | Up to 8000 lbs |
Compatibility
| Compatible Equipment | Crown PE 4000 Series Electric Pallet Trucks |
Frequently Asked Questions
Q: What Crown pallet truck model does the CR 065117-2 fit?
A: The CR 065117-2 is an OEM replacement bushing for Crown PE 4000 series electric pallet trucks. It is designed for frame pivot and linkage assembly applications and is rated for equipment with up to 8000 lbs load capacity.
Q: What are the specifications of the CR 065117-2 bushing?
A: Inner diameter is 1.006 inches, outer diameter is 1.253 inches, and overall length is 1.25 inches. The bushing is press-fit style with a machined groove and lubrication hole.
Q: What material is used in the CR 065117-2 bushing?
A: The CR 065117-2 is made from sintered iron, which offers durability and low friction characteristics for repeated pivot and articulation cycles in pallet truck operation.
Q: What part number does the CR 065117-2 replace or supersede?
A: The CR 065117-2 replaces and supersedes 065117-001. The manufacturer part number is 065117-002. Confirm compatibility with your equipment before ordering.
