Product Description

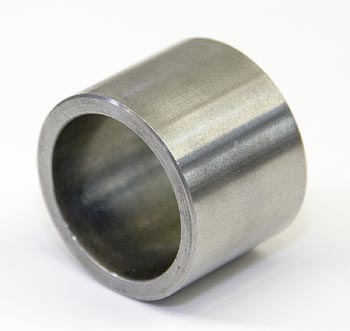

Crown sintered iron bushing designed for use in Crown PE4000 series electric pallet trucks and Raymond 8300, 8400, and 8500 series equipment. Features precision construction with groove and lubrication hole for optimal bearing surface performance. Rated for up to 8000 lbs service load and delivers reliable durability in warehouse loading, unloading, and transport applications.
Specifications
Part Numbers
| Part Number | CR 65117-2 |
| Cross-Reference Part Numbers | 065117-001, CR 065117-002 |
Specifications
| Material | Precision Sintered Iron |
| Inner Diameter | 1.006 inch |
| Outer Diameter | 1.253 inch |
| Length | 1.25 inch |
| Features | Groove and Lubrication Hole |
| Service Rating | Up to 8000 lbs |
| Compatible Makes | Crown, Raymond |
| Compatible Models | Crown PE4000 series, Raymond 8300, 8400, 8500 series |
Frequently Asked Questions
Q: Which equipment does the CR 65117-2 bushing fit?
A: The CR 65117-2 is an OEM Crown bushing that fits Crown PE4000 series electric pallet jacks and Raymond 8300, 8400, and 8500 series equipment. This bushing is used in exit roller and drive axle assemblies. Do not substitute with incompatible part numbers without verifying dimensions and load ratings.
Q: What are the exact dimensions of the CR 65117-2 bushing?
A: Inner diameter is 1.006 inches, outer diameter is 1.253 inches, and length is 1.25 inches. The bushing features a groove and lubrication hole for continuous bearing surface function. Verify these dimensions match your equipment before ordering to ensure proper fit.
Q: What is the load capacity and material of the CR 65117-2?
A: The CR 65117-2 is constructed from precision sintered iron for high durability and low friction. It is rated for up to 8000 pounds service load. This load rating applies to normal warehouse operations; consult OEM specifications if your equipment operates at or near maximum capacity.
Q: Does the CR 65117-2 supersede or replace older part numbers?
A: The CR 65117-2 supersedes and replaces both 065117-001 and CR 065117-002. These older part numbers are equivalent in function and dimension. If you have legacy equipment documentation referencing 065117-001 or CR 065117-002, order CR 65117-2 as the current OEM replacement.
Q: How often should the CR 65117-2 bushing be inspected or replaced?
A: Under normal warehouse use with routine lubrication, expect 18 to 24 months of service life. Inspect annually for wear, grinding, or excessive clearance. Replace immediately if you observe noise at the axle, binding, or play in the roller assembly. High-use or outdoor applications may require more frequent inspection and earlier replacement.
