LF PL-20226A

Frequently Asked Questions

Q: What is the LF PL-20226A and what does it do?

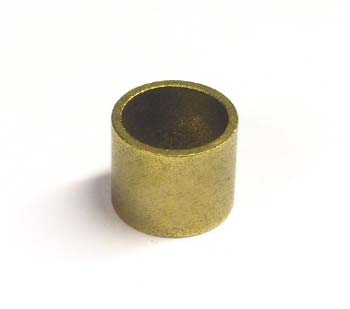

A: The LF PL-20226A is an eye bolt bushing designed for manual pallet jack assemblies. It interfaces with 3/4-16 UNF eye bolts to provide proper bearing support and load distribution at lifting lug attachment points. Six bushings are required per assembly on Lift-Rite ultra-low-profile and compact models.

Q: Which Lift-Rite models require the LF PL-20226A bushing?
A: The LF PL-20226A is the OEM specification for Lift-Rite models LCM50, LCU50, and LCUUF (compact and ultra-low-profile variants). These models feature bushed eye bolt connections rather than solid eye bolts. Do not substitute the older LF PL-20226 solid eye bolt on equipment requiring the bushing assembly.

Q: What does it mean that LF PL-20226A supersedes PL-20226?
A: Supersession means the LF PL-20226A is the current approved replacement for PL-20226 on applicable models. The bushing design offers improved load distribution and longer service life on compact and ultra-low-profile pallet jacks. If your equipment model is LCM50, LCU50, or LCUUF, order the LF PL-20226A. Older L50M and LU50 models remain compatible with the original LF PL-20226 eye bolt.

Q: How many LF PL-20226A bushings do I need?
A: Six bushings per complete eye bolt assembly are required as OEM specification. This accounts for three lifting lugs on typical pallet jack frames, with two bushings per lug connection point. Verify your frame design and lifting lug count before ordering.
