Product Description

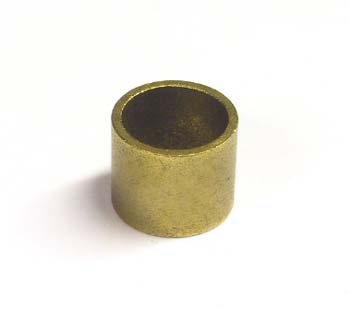

Lift-Rite PL-20206 lever arm bushing for manual pallet jack assemblies. Compatible with LS100 heavy duty pallet trucks, LR2055 hand pallet trucks, and L50M series models. Plain bearing bushing designed for pivot joint applications in 5000-10000 lb capacity equipment. Cross-references to LF 20206 and LF PL20206. Used in lever arm, push bar, and exit roller assemblies.
Specifications
Part Numbers & Compatibility
| Manufacturer Part Number | PL-20206 |
| Cross-Reference Part Numbers | LF 20206, LF PL20206 |
| Application Model Compatibility | LS100 Heavy Duty Pallet Truck, LR2055 Hand Pallet Truck, L50M Series, L50MU Series |
| Assembly Position Reference | Item 16 in push bar assembly, Item 17 in heavy duty pump assembly, Item 39 in chassis assembly |
| Related Assembly Components | Works with lever arm assembly PL-20212, exit roller PL-20220, eye bolt pin PL-20227 |
Frequently Asked Questions
Q: What is the PL 20206 lever arm bushing designed for?
A: The PL 20206 is a plain bearing bushing designed for pivot joint applications in manual pallet jack lever arms, push bars, and exit roller assemblies. It provides low-friction rotation support at multiple load-bearing connection points.
Q: Which pallet truck models are compatible with the PL 20206?
A: The PL 20206 is compatible with the LS100 heavy duty pallet truck, LR2055 hand pallet truck, and L50M and L50MU series models. These Lift-Rite platforms support 5000 to 10000 lb capacity applications across standard warehouse operations.
Q: What are the cross-reference part numbers for the PL 20206?
A: The PL 20206 cross-references to LF 20206 and LF PL20206. If you are switching suppliers or need an equivalent part, verify that the substitute bushing has matching dimensions and material specifications before ordering.
Q: Where are PL 20206 bushings located in the pallet jack assembly?
A: The PL 20206 bushing is positioned at Item 16 in the push bar assembly and Item 17 in the heavy duty pump assembly according to manufacturer service documentation. Additional bushings may be required in the lever arm and exit roller pivot joints depending on equipment configuration.
Q: What material specification does the PL 20206 have?
A: The PL 20206 is a machined steel plain bearing bushing designed for high-cycle pivot applications. The material composition provides durability and wear resistance in manual pallet jacks rated for continuous warehouse use with loads up to 10000 lb.
