Product Description

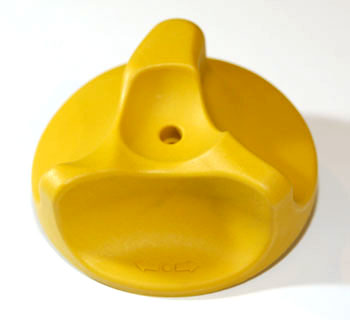

Left-hand butterfly switch designed for Hyster W40Z and W45Z electric pallet trucks. Controls tiller head travel direction and speed with 24VDC nominal voltage, robust thermoplastic housing, and silver-plated contacts. Ensures direct compatibility with original equipment wiring harness for reliable operation in demanding warehouse environments.
Specifications
Electrical
| Voltage Rating | 24VDC nominal |
Material
| Switch Housing Material | High-impact thermoplastic |
| Actuator Material | Reinforced polymer lever |
| Contact Material | Silver-plated contacts |
Part Numbers
| Part Number | 1600593 |
| Compatible Models | Hyster W40Z (B218), Hyster W45Z (C215) |
Performance
| Service Life (Mechanical) | Rated for 1,000,000 cycles minimum |
| Integration | Integrates with original equipment wiring harness |
Frequently Asked Questions
Q: Which Hyster models is the HY 1600593 left-hand butterfly switch compatible with?
A: The HY 1600593 is designed for Hyster W40Z (B218) and Hyster W45Z (C215) electric pallet trucks. Confirm your equipment model matches before ordering.
Q: What voltage and current specifications does the HY 1600593 have?
A: The HY 1600593 operates at 24VDC nominal voltage. This switch integrates directly with the original equipment wiring harness on compatible models.
Q: What materials does the HY 1600593 use for durability in material handling applications?
A: The housing is high-impact thermoplastic with a reinforced polymer lever actuator. Contact points are silver-plated to resist corrosion and maintain consistent electrical performance under frequent use.
Q: What is the mechanical cycle rating for the HY 1600593?
A: The HY 1600593 is rated for a minimum of 1,000,000 mechanical cycles, ensuring reliable operation in demanding warehouse and loading dock environments.
Q: Are there cross-reference part numbers for the HY 1600593?
A: No direct cross-reference part numbers are documented. This is an OEM Hyster part. Always verify against your equipment documentation to confirm correct fitment.
