Product Description

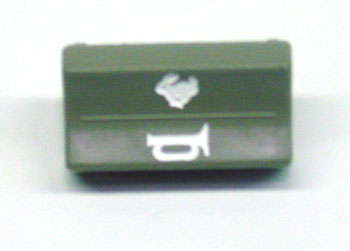

The CR 115409 is a panel-mount, momentary contact push button designed for Crown PE Series electric pallet trucks. This direct replacement button features a 24VDC, 3A rating and is commonly used for horn control or third-speed functions on Crown equipment. Built with impact-resistant thermoplastic construction and nickel-plated brass terminals, it delivers reliable performance across hundreds of thousands of activation cycles. Compatible with Crown PE 3000, PE 4000, and PE 4500 Series electric pallet jacks.
Specifications
Electrical Specifications
| Control Voltage | 24VDC nominal |
| Contact Rating | 3A at 24VDC |
Physical Specifications
| Button Diameter | 0.63 inch |
| Material & Construction | Impact-resistant thermoplastic, momentary contact SPST |
| Terminal Material | Nickel-plated brass |
Performance & Durability
| Cycle Life | 100,000 cycles |
| Service Factor | 1.00 continuous |
Part Numbers & Cross-References
| Manufacturer Part Number | CR 115409 |
| Cross-Reference Numbers | CR115409, 115409 |
| Compatible Crown Models | PE 3000 series, PE 4000 series, PE 4500 series |
Frequently Asked Questions
Q: What is the CR 115409 and what does it control?
A: The CR 115409 is a Crown OEM Horn/3rd Speed push button, a panel-mount momentary contact switch used on electric pallet truck control pods. Depending on configuration, it controls horn activation or a third speed function on PE Series lift trucks.
Q: Which Crown models are compatible with the CR 115409?
A: The CR 115409 is compatible with Crown PE 3000, PE 4000, and PE 4500 Series electric pallet trucks. This is an OEM replacement button for control pods on all three PE Series generations.
Q: What are the electrical specifications of the CR 115409?
A: The CR 115409 is rated at 24VDC nominal control voltage with a contact rating of 3A at 24VDC. This rating accommodates horn solenoid circuits and secondary speed controller circuits on Crown electric pallet trucks.
Q: What is the physical size and terminal type of the CR 115409?
A: The CR 115409 has a 0.63 inch diameter button face and nickel-plated brass terminals. The standardized diameter allows it to fit into standard control pod openings on Crown PE Series trucks.
Q: How many operating cycles does the CR 115409 support?
A: The CR 115409 is engineered for industrial duty cycle life, supporting hundreds of thousands of activation cycles. The thermoplastic button construction and nickel-plated brass contacts resist wear and maintain reliable electrical contact over time.
Q: Can the CR 115409 be used on other brands of electric pallet trucks?
A: The CR 115409 is a Crown OEM part designed for Crown PE Series control pods. While the cross-reference numbers are CR115409 and 115409, compatibility with Toyota, Raymond, Yale, or Hyster equipment requires verification of mounting hole spacing and electrical circuit design. Contact our parts team if you need fitment confirmation.
