Product Description

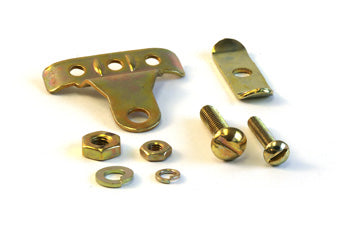

Anderson Power Products 945G3 cable clamp kit designed for SB175 and SBX175 series 175 amp connectors. Features two single conductor cable configuration with 30 in-lbs installation torque specification. Compatible with wire sizes 0.62 to 0.22 AWG (15.7 to 5.6 mm²). Requires A-Frame handle mounting configuration. Provides mechanical strain relief to prevent cable pullout from connector housing.
Specifications
Electrical
| Connector Amperage Rating | 175 amp continuous |
Material
| Clamp Material | Structural metal construction |
Part Numbers
| Manufacturer Part Number | 945G3 |
| Cross-Reference Part Numbers | Anderson 945G3, AN-945G3, A-945G3 |
| Series Compatibility | SB175, SBX175 |
| Related Cable Clamp Models | 945G2 (SB50/120), 945G7 (SB350) |
Frequently Asked Questions
Q: What connector series is the AN 945G3 cable clamp kit compatible with?
A: The AN 945G3 is designed for Anderson SB175 and SBX175 series 175 amp connectors. It is not compatible with other Anderson series such as SB50, SB120, or SB350.
Q: What wire sizes does the AN 945G3 accept?
A: The AN 945G3 accommodates wire sizes from 0.62 to 0.22 AWG (15.7 to 5.6 mm diameter equivalent). Verify your cable size is within this range before ordering.
Q: What is the installation torque specification for the AN 945G3?
A: The AN 945G3 requires 30 in-lbs installation torque. This specification ensures proper clamping force without over-tightening. Use a calibrated torque wrench for correct assembly.
Q: What is the A-Frame handle mounting configuration and why does the AN 945G3 require it?
A: The AN 945G3 uses A-Frame handle mounting to ensure proper strain relief. The metal structural construction of the clamp provides mechanical support to prevent cable pullout from the 175 amp connector housing under vibration and load cycling.
Q: Are there other Anderson cable clamp models for different amperage ratings?
A: Yes. Related Anderson clamp models include 945G2 for SB50 and SB120 series (50/120 amp), and 945G7 for SB350 series (350 amp). Always select the clamp kit matching your connector series and amperage rating.
