Product Description

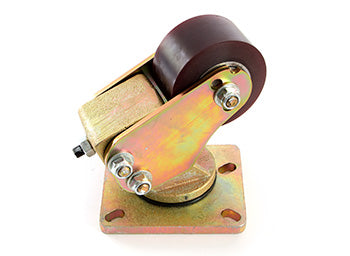

Toyota OEM caster assembly TO 00590-00002-71 for electric pallet jack applications. Complete swivel unit features 3-inch diameter x 3.5-inch polyurethane wheel, 3-piece roller bearing system with hardened raceways, laser cut steel leg construction, and polyurethane torsion spring block. Mounting plate measures 4.00 x 4.75 inches with slotted hole pattern adjustable from 2.30 x 3.30 to 2.95 x 3.95 inches. Assembly height 7.38 inches with 1.26-inch swivel lead. Compatible with Toyota 9BRU18, 9BRU2
Specifications
Material & Construction
| Leg Fabrication | Laser cut steel plate construction with through-bolt clamped assembly |
Mechanical Specifications
| Bearing Configuration | 3-piece roller bearing assembly with hardened ground raceways, maintenance-free sealed precision ball bearings in wheel hub |
| Axle Type | Solid axle construction, optional hollow axle with zerk grease fitting for washdown environments |
Part Numbers & Compatibility
| OEM Part Number | TO 00590-00002-71 |
| Cross-Reference Part Numbers | Larcaster LC 2000 solid axle configuration, LC 2500 lube axle configuration per interchange reference 00590-04913-71 |
| Manufacturer Equipment Compatibility | Toyota electric pallet jack models including 9BRU18, 9BRU23, 9DRU13, 9DRU15 series |
Performance Specifications
| Swivel Function | 360-degree continuous rotation with shock absorption for industrial cornering duty |
Frequently Asked Questions
Q: What are the wheel specifications for the TO 00590-00002-71 caster assembly?
A: This assembly features a 3-inch diameter polyurethane wheel with 3.5-inch width. The wheel is mounted on a 3-piece roller bearing system with hardened raceways. Assembly height measures 7.38 inches overall with a 1.26-inch swivel lead.
Q: Which Toyota electric pallet jack models is this caster compatible with?
A: The TO 00590-00002-71 fits Toyota electric pallet jack models including 9BRU18, 9BRU23, 9DRU13, and 9DRU15. Cross-reference with Larcaster LC 2000 solid axle and LC 2500 lube axle configurations per interchange reference 00590-04913-71.
Q: What are the mounting plate dimensions and adjustment range?
A: The mounting plate measures 4.00 x 4.75 inches with a slotted hole pattern. The mounting holes are adjustable within a range from 2.30 x 3.30 inches to 2.95 x 3.95 inches, allowing flexibility for different mounting configurations.
Q: What construction materials are used in this caster assembly?
A: The leg is constructed from laser-cut steel for precision and durability. The swivel mechanism includes a polyurethane torsion spring block, and the wheel is polyurethane with roller bearings featuring hardened steel raceways.
Q: Is the TO 00590-00002-71 a complete swivel unit?
A: Yes, this is a complete swivel caster assembly. It includes the wheel, bearing system, steel leg, torsion spring block, and mounting plate. No additional components are required for direct OEM replacement applications.
