Product Description

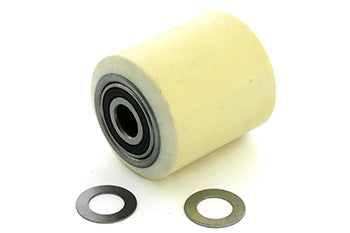

The RA 671-041-003-XL polyurethane caster wheel assembly provides reliable performance for Raymond 8300, 8400, and 8500 series electric pallet trucks. With 95A durometer polyurethane construction and sealed bearing configuration, this caster delivers superior durability and floor protection in demanding warehouse environments. The integrated thrust bearing system reduces stress during load turns and extends assembly life.
Specifications
Material & Construction
| Wheel Material Composition | Polyurethane elastomer |
| Durometer Hardness Rating | 95A Shore durometer scale |
| Seal Configuration | O-ring seal RA 671-041-12 for bearing protection |
Mechanical Specifications
| Bearing Installation Components | Bearing cup RA 671-041-13, bearing cone RA 671-041-14, bearing shield RA 671-041-15 |
| Mounting Hardware | Lock nut RA 671-041-21, mounting bolts RA 671-041-19 and RA 671-042-22 |
| Pivot System | King pin RA 671-041-17 with adjusting plate RA 671-042-04 |
Part Numbers & Compatibility
| OEM Part Number | RA 671-041-003-XL |
| Cross-Reference Part Numbers | Interchangeable with RA671-041-003-XL, RA 671-041-003, base assembly 671-041-003-XL |
| Compatible Equipment Models | Raymond 8300, 8400, 8500 series electric pallet trucks |
| Base Assembly Reference | RA 1017847 complete caster assembly system |
| Axle Hardware | Axle nut RA 671-041-16, axle tube RA 671-041-06 |
| Structural Components | Housing RA 101847-01, torsion block RA 671-041-03, mounting arm RA 671-041-05, base plate RA 671-041-02 |
Frequently Asked Questions
Q: What Raymond equipment models are compatible with the RA 671-041-003-XL?
A: The RA 671-041-003-XL is engineered for Raymond 8300, 8400, and 8500 Series electric pallet trucks. Verify your equipment model designation and serial range fall within these compatible series.
Q: What is the durometer hardness rating of this polyurethane caster wheel?
A: The RA 671-041-003-XL features a 95A durometer hardness polyurethane tread. This compound balances grip, floor protection, and load capacity for heavy-duty material handling in standard warehouse conditions.
Q: What bearing system is used in this caster assembly?
A: The RA 671-041-003-XL includes a sealed bearing configuration with a thrust bearing system. The thrust bearing absorbs vertical loads and reduces radial stress during turning, extending overall assembly life in high-demand applications.
Q: What part numbers reference the RA 671-041-003-XL assembly?
A: Cross-reference part numbers include RA671-041-003-XL, RA 671-041-003, base assembly 671-041-003-XL, and RA 1017847 complete caster assembly system reference. Use these numbers to locate documentation or equivalent parts.
Q: Is the RA 671-041-003-XL suitable for heavy-duty material handling?
A: Yes, the sealed bearing configuration and thrust bearing system are engineered specifically for heavy-duty material handling applications. The 95A polyurethane compound and precision bearing design support sustained high-load operation in distribution centers and manufacturing facilities.
