Product Description

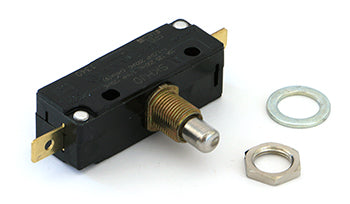

Clark SWITCH LMS (CL 7004092) is an OEM limit switch for electric lift truck assemblies, featuring a plunger actuator, SPDT contacts, 16A 250VAC rating, and thermoplastic housing. Supersedes CL7004092A, replaces 7004092R, and is equivalent to 9974040920. Compatible with select Clark electric lift truck models.
Specifications
Electrical
| Contact Rating | 16A at 250VAC, 0.5A at 125VDC |
| Voltage Rating | Up to 250VAC |
| Terminal Type | Screw terminal, #6-32 UNC |
Material
| Switch Casing Material | Thermoplastic housing, UL 94V-0 rated |
| Actuator Material | Stainless steel plunger |
Part Numbers
| OEM Part Number | CL 7004092 |
| Manufacturer Part Number | 7004092 |
| Cross-Reference Part Numbers | Replaces 7004092R; Equivalent to 9974040920 |
| Supersedes | Supersedes CL7004092A |
Frequently Asked Questions
Q: What are the voltage and amperage ratings for the CL 7004092 limit switch?
A: The CL 7004092 is rated for 16A at 250VAC or 0.5A at 125VDC. The switch supports AC power in primary applications and limited DC power. Verify your truck electrical system voltage before ordering to ensure proper fitment.
Q: What are the cross-reference and superseding part numbers for the CL 7004092?
A: The CL 7004092 supersedes the earlier CL7004092A variant. It replaces the older part number 7004092R and is electrically equivalent to part number 9974040920. Verify your truck documentation to confirm which part number is installed on your lift truck.
Q: What is the contact configuration and terminal type of the CL 7004092?
A: The CL 7004092 features SPDT (single-pole double-throw) contacts with screw terminals rated as #6-32 UNC. SPDT configuration allows the switch to handle changeover control logic, making it suitable for mechanical limit applications on lift truck masts and carriages.
Q: What type of actuator does the CL 7004092 limit switch use?
A: The CL 7004092 uses a plunger actuator design. The plunger responds to mechanical contact with lift truck assembly components such as mast stops, carriage limits, or load stops to interrupt or change electrical circuits at specified positions.
Q: What materials and housing does the CL 7004092 limit switch have?
A: The CL 7004092 features a thermoplastic housing providing electrical insulation and mechanical durability. The thermoplastic enclosure protects internal contacts and terminals from moisture, dust, and vibration in the lift truck environment.
Q: Which Clark electric lift truck models use the CL 7004092 limit switch?
A: The CL 7004092 is compatible with select Clark electric lift truck models. Verify your specific truck series and control circuit application against the OEM documentation to confirm this is the correct replacement limit switch.
