Product Description

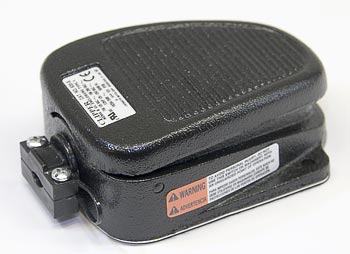

Clark SKU CL 7004119 is an OEM foot switch designed for SCR (Silicon Controlled Rectifier) control circuits in Clark electric lift trucks. This pedal-actuated, momentary-contact switch provides durable, high-cycle actuation and features a 24VDC electrical rating, 2-pin quick connect interface, and robust reinforced nylon pedal. Directly replaces Clark part numbers 732434, 875723, and 238849, and is suitable for GEX20, GEX25, and ESM16 models.
Specifications
Electrical
| Electrical Rating | 10A at 24VDC, resistive load |
| Voltage Rating | 24VDC nominal switching |
| Connector Type | 2-pin quick connect |
| Duty Cycle | Continuous duty, 100 cycles/hour |
| Contact Life | Rated minimum 250,000 cycles |
Material & Construction
| Pedal Material | Reinforced glass-filled nylon |
| Housing Material | High-impact ABS plastic |
Part Numbers
| Part Number | CL 7004119 |
| Manufacturer Part Number | 7004119 |
| Cross-Reference Part Numbers | Replaces Clark 732434, replaces Clark 875723, supersedes Clark 238849 |
| Equivalent Part Numbers | CL732434, CL875723, CL238849 |
| Compatible Clark Models | GEX20, GEX25, ESM16 |
Applications
| Equipment Type | Electric lift trucks with SCR control circuits |
| Switch Function | Pedal-actuated momentary-contact switching for drive, directional, or secondary control |
Frequently Asked Questions
Q: What is the 7004119 foot switch and what does it control?
A: The 7004119 is a pedal-actuated foot switch designed for Clark electric lift trucks equipped with SCR (Silicon Controlled Rectifier) control circuits. It provides momentary-contact switching for drive, directional, or secondary control functions, rated at 10A at 24VDC.
Q: Which Clark electric lift truck models are compatible with the 7004119?
A: The 7004119 is compatible with Clark GEX20, GEX25, and ESM16 electric lift truck models. It directly replaces Clark part numbers 732434 and 875723, and supersedes Clark 238849. Always verify your model designation before ordering.
Q: What is the electrical rating and connector type for the 7004119?
A: The 7004119 is rated at 10A at 24VDC. It features a 2-pin quick connect interface, allowing for fast disconnection and replacement without cutting or crimping wires. Verify connector compatibility with your truck before ordering.
Q: What materials are used in the 7004119 pedal and housing?
A: The 7004119 features a robust reinforced glass-filled nylon pedal that withstands repeated foot actuation and material handling environments. The housing is engineered from high-impact ABS plastic for industrial duty, providing long-term durability in wet, oily, and temperature-variable conditions.
Q: What is the expected lifespan and maintenance of the 7004119 foot switch?
A: The 7004119 is rated for a minimum of 250,000 contact cycles with continuous duty operation at approximately 100 cycles per hour. Switches should be replaced if the pedal becomes stiff, does not return to neutral position reliably, or fails continuity testing. Regular visual inspection can identify pedal wear early.
Q: Are there cross-reference part numbers equivalent to the 7004119?
A: Yes. The 7004119 is equivalent to Clark part numbers 732434, 875723, and 238849. It directly replaces the original Clark 732434 and 875723, and supersedes Clark 238849. Use the exact part number when ordering to ensure proper fitment and compatibility.
Q: How should the 7004119 foot switch be stored when not in use?
A: Store the 7004119 in a clean, dry location away from extreme temperatures, moisture, and corrosive substances. Keep the connector pins protected from dust and debris. Avoid exposure to direct sunlight or humid environments to preserve the plastic pedal and housing integrity.
Q: Can the 7004119 be used with non-SCR control systems?
A: The 7004119 is specifically designed for SCR (Silicon Controlled Rectifier) control circuits. Do not use with non-SCR systems without verifying electrical compatibility with your truck's control circuit. Consult your equipment manual or contact Clark support for compatibility confirmation.
