Product Description

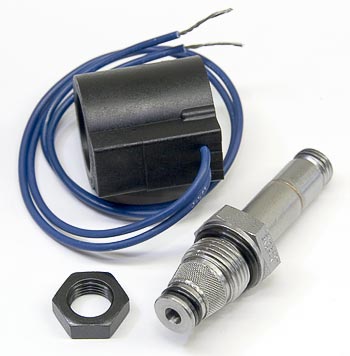

Clark CL 994698 solenoid valve for electric lift trucks is a direct-acting, normally closed hydraulic control valve available with brass or stainless steel body, compatible with industrial lift truck systems. Features multiple coil voltages, NEMA 4X and explosion-proof enclosures, and accepts 1/8 or 1/4 inch NPT female process connections.
Specifications
Electrical
| Coil Voltage Options | 12VDC, 24VDC, 24VAC, 120VAC |
| Power Consumption | 22 Watts (continuous duty, Class H insulation) |
| Connection Type | 18 inch leads, 1/2 inch NPT conduit |
Material
| Valve Body Construction | 316 Stainless Steel (CF8M) optional |
Part Numbers
| Manufacturer Part Number | CL 994698 |
| OEM Part Number | CL 994698 |
Performance
| Minimum Pressure Differential | 100 PSI |
Frequently Asked Questions
Q: What are the coil voltage and power specifications for the CL 994698 solenoid valve?
A: The CL 994698 solenoid valve accepts 12VDC, 24VDC, 24VAC, or 120VAC coil voltages with a power consumption of 22 watts continuous duty and Class H insulation for industrial applications.
Q: What pressure differential does the CL 994698 require to operate?
A: The CL 994698 is a direct-acting, normally closed solenoid valve with a minimum pressure differential of 100 PSI to engage the valve spool.
Q: What connection options are available for the CL 994698 solenoid valve?
A: The CL 994698 accepts 1/8 inch or 1/4 inch NPT female process connections and provides 18 inch leads with 1/2 inch NPT conduit connection for the electrical circuit.
Q: What materials are available for the CL 994698 valve body?
A: The CL 994698 solenoid valve body is available in brass or stainless steel construction. Stainless steel is recommended for corrosive environments or cold storage applications.
Q: What safety certifications does the CL 994698 solenoid valve meet?
A: The CL 994698 is available with NEMA 4X rated enclosures and explosion-proof options for use in classified hazardous environments on Clark electric lift trucks.
