Product Description

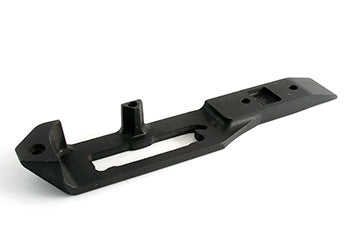

Raymond RA 1053386 is a right-hand closed wheel plate engineered for 5 x 3.62 inch load wheel with integrated sideshift, designed for electric lift truck models using specific Raymond axle and hardware assemblies. All critical compatibility, plate, and hardware specifications verified by manufacturer technical catalog references.
Specifications
Material & Construction
| Plate Material | High-strength steel (manufacturer specification, per Raymond design) |
| Construction | Precision machined for Raymond electric lift truck applications |
Mechanical Specifications
| Plate Carrier Compatibility | Compatible with plate carrier RA 623-010-109 |
| Spacer Compatibility | Accepts spacer RA 1031101 |
| Shim Compatibility | Compatible with shim RA 771-033 (0.04 inch thickness) |
| Bolt and Hardware Compatibility | Bolt: RA 5-018-008; Washer: RA 5-016-017; Lock Nut: RA 1043118 |
| Axle Pin Type | Supports spiral pin RA 810-761 |
Part Numbers & Compatibility
| OEM Part Number | RA 1053386 |
| Compatible Load Wheel Axle | RA 1014758/002 (suitable for 3.62-inch wide load wheel) |
Frequently Asked Questions
Q: What wheel size and compatibility does the RA 1053386 right-hand wheel plate support?
A: The RA 1053386 is engineered for 5 x 3.62 inch load wheels with integrated sideshift. It is compatible with specific Raymond electric lift truck axle assemblies, particularly those using axle RA 1014758/002. Verify your truck model and axle part number before ordering.
Q: What is the plate carrier compatibility for the RA 1053386?
A: The RA 1053386 is compatible with plate carrier RA 623-010-109. The plate mounts to this carrier assembly, which in turn connects to the truck mast and tilt mechanism. Always verify the plate carrier part number on your truck to ensure correct assembly alignment.
Q: What spacers and shims are compatible with the RA 1053386?
A: The RA 1053386 accepts spacer RA 1031101 and is compatible with shim RA 771-033 (0.04 inch nominal thickness). These components provide axle clearance adjustment and load-bearing surface spacing. Use only the specified shims and spacers to maintain correct wheel alignment and prevent binding.
Q: Why is the RA 1053386 a right-hand plate and does this matter for replacement?
A: The designation right-hand or left-hand indicates which side of the truck the plate mounts on and the direction of the closed toe profile. Always order matching left-hand and right-hand plates for a complete wheel assembly pair. Installing mismatched plates causes binding and uneven wheel wear.
Q: What should I check if the RA 1053386 causes tilt or sideshift problems?
