Product Description

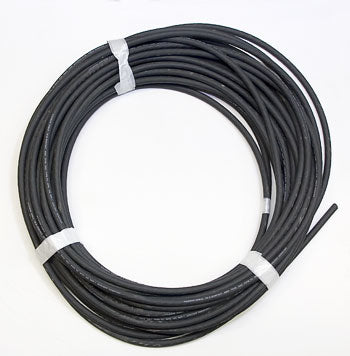

AS11808 is an 18 AWG, 8-conductor, UL Type TC power and control tray cable with annealed copper conductors, dual-layer HDPE/polyimide insulation, and heavy-duty neoprene jacket, rated for 600 VAC, 90°C, and compliant with UL 1277 and IEEE 383 flame tests.
Specifications
Electrical
| Gauge | 18 AWG |
| Number of Conductors | 8 |
| Conductor Material | Annealed copper |
| Voltage Rating | 600 VAC |
| Temperature Rating | 90°C |
| Cable Type | UL Type TC power and control tray cable |
Construction
| Insulation Material | 15 mils HDPE with 5 mils clear polyimide |
| Jacket Material | Heavy-duty neoprene |
| Core Construction | Cabled with fillers, Mylar tape over core, concentric insulation |
Application
| Typical Use | Installed in trays, raceways, ducts, direct burial; control, power, lighting, signals, telemetering in electric lift trucks and industrial equipment |
Standards and Compliance
| Compliance | UL 1277 and IEEE 383 flame tests |
| Manufacturer Part Number | AS11808 |
Frequently Asked Questions
Q: What is the AS11808 cable and what are its specifications?
A: The AS11808 is an 18 AWG, 8-conductor power and control tray cable rated for 600 VAC at 90 degrees Celsius. It features annealed copper conductors, dual-layer HDPE/polyimide insulation with 15 mils HDPE and 5 mils polyimide, and a heavy-duty neoprene jacket. It complies with UL 1277 and IEEE 383 flame tests.
Q: Where can the AS11808 cable be installed?
A: The AS11808 is rated for installation in trays, raceways, ducts, and direct burial applications. It is suitable for control and power distribution in electric lift truck systems, material handling equipment, and industrial machinery where UL compliance is required.
Q: What equipment types use the AS11808 8-conductor cable?
A: The AS11808 is designed for electric lift trucks, pallet jacks, and other powered material handling equipment requiring multi-conductor power and control lines. Verify voltage requirements and conductor count match your specific equipment before ordering.
Q: What is the amperage capacity of the AS11808 18 AWG cable?
A: 18 AWG conductors in the AS11808 are rated for approximately 10-14 amps per conductor depending on installation method and ambient temperature. Consult the NEC and UL 1277 specifications for precise amperage ratings based on your application and thermal conditions.
Q: Is the AS11808 cable suitable for wet and outdoor environments?
A: The AS11808 neoprene jacket and dual-layer insulation provide moisture resistance for wet environments. The cable is suitable for direct burial and outdoor storage areas. However, verify cable routing avoids standing water and ensure proper grounding for outdoor applications.
Q: How long does the AS11808 cable maintain performance?
A: The AS11808 typically lasts 5-10 years under normal operating conditions within specification limits. Service life depends on voltage stress, temperature cycling, moisture exposure, and physical abrasion. Inspect annually for jacket cracking or insulation degradation. Replace if conductors are exposed or jacket is compromised.
