Product Description

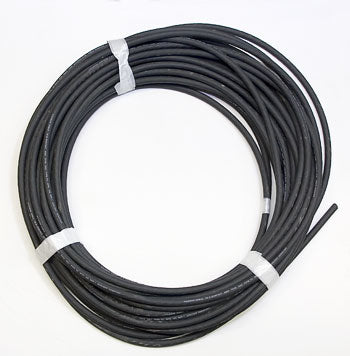

Ecoa EC-SPEC4 Conductor Cable is an 8-wire, 18 AWG stranded copper cable featuring PVC insulation and jacket, designed for electric lift truck applications. The cable provides 300V voltage rating, 1.5A per conductor at 25°C, bi-laminate shield with 100% coverage, and 0.224-inch nominal diameter. Color-coded conductors facilitate easy identification for installation and service in industrial environments.
Specifications
Electrical
| Voltage Rating | 300V |
Material & Construction
| Insulation Material | PVC |
| Jacket Material | PVC |
| Shield Type | Bi-laminate tape shield (Aluminum/PET) with 100% coverage |
Part Numbers
| OEM Part Number | EC-SPEC4 |
Frequently Asked Questions
Q: What applications is the EC-SPEC4 conductor cable designed for?
A: The EC-SPEC4 is an 8-wire, 18 AWG stranded copper cable designed for electric lift truck applications. The 300V voltage rating and 1.5A per conductor rating at 25°C make it suitable for control circuits and low-voltage signal transmission in electric pallet jacks, order pickers, and reach trucks from manufacturers like Crown, Toyota, and Raymond.
Q: What is the nominal diameter and insulation material of this cable?
A: EC-SPEC4 has a nominal diameter of 0.224 inches. The cable features PVC insulation on each conductor and a PVC jacket for the overall cable assembly, providing chemical and abrasion resistance in warehouse environments.
Q: Does this cable include shielding, and what is its coverage?
A: Yes. EC-SPEC4 includes a bi-laminate shield with aluminum and PET layers providing 100% coverage. This shielding protects against electromagnetic interference in equipment with multiple electrical systems operating simultaneously.
Q: Are the conductors color-coded for identification?
A: Yes. EC-SPEC4 features color-coded stranded copper conductors to facilitate easy identification during installation and service work, reducing the risk of incorrect connections in industrial environments.
